Ref: PST10DL
Last items in stockPST10DL

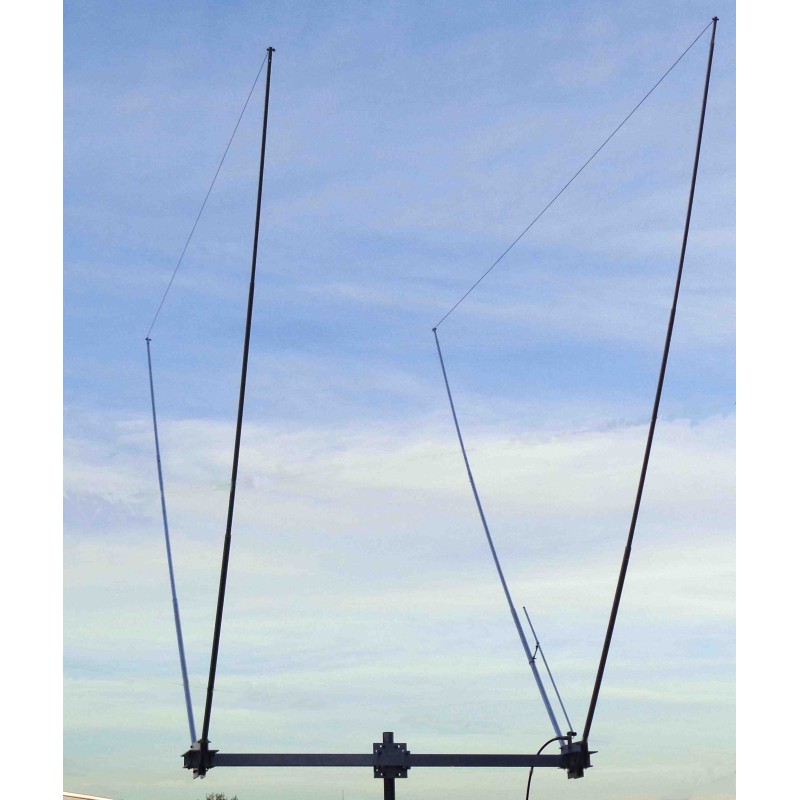

Mini Delta Loop monoband 2 elements covering the 10 or 11m bands. Very robust construction, made in a “fully grounded radiator-director” configuration. The gamma match coupler gives the antenna better performance in terms of impedance matching and excellent useful bandwidth. Small dimensions and lightness make it easy to use even in narrow spaces. For optimal operation, we recommend mounting it at a height of at least 4-5m from the ground.
PST-11DL version available
MASS SPECIFICATIONS:
- I earn: 6-8 dBd
- Impedance: 50 ohms
- Double-sided: 18-20dB approximately
- Front side: >25dB
- ROS: <1:1 at center of band, band edges within 1:1.8
- Boom length: 1.3m
- Rotation radius: 65cm
- Weight: 8kg approximately
- Accepts: 48mm (standard) or 60mm (optional) mast
- Material: AL6060T6, stainless steel bolts.
