Ref: PSTDELTA40W
Immediately availablePST-DELTA 40W
Full size high efficiency wire antenna, designed to be installed in a vertical polarization configuration. For optimal operation, it is recommended to mount it with the top at least 15-18m from the ground. The antenna easily covers the entire band. Specifications may vary depending on local conditions.
The loop also includes the 2:1 balun
40 m
Gain: 0 db;
SWR: 1:1.3 mid-band;
Maximum power: 2KW pep;
Impedance: 50 ohms
Amphenol or Teflon: SO239

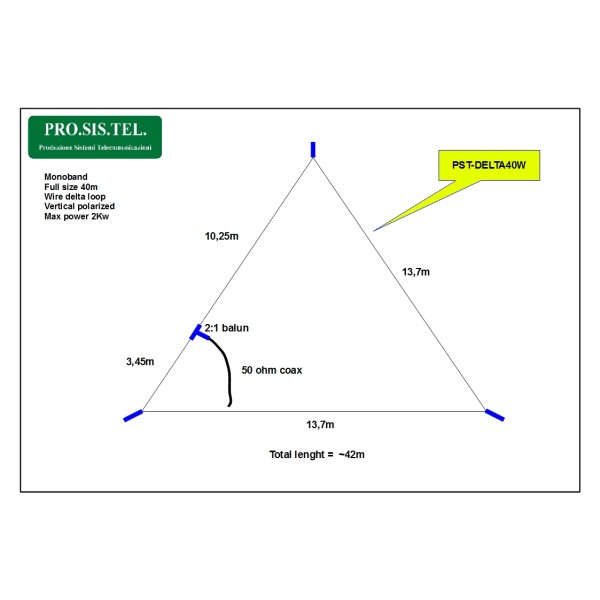

Total length: see drawing
Weight: approximately 2.5 kg
Max wind: 130km
Data sheet
