Lafayette i24-300S PURE SINE WAVE INVERTER
Ref: 5740488
Last items in stockINVERTER WITH PURE SINE WAVE

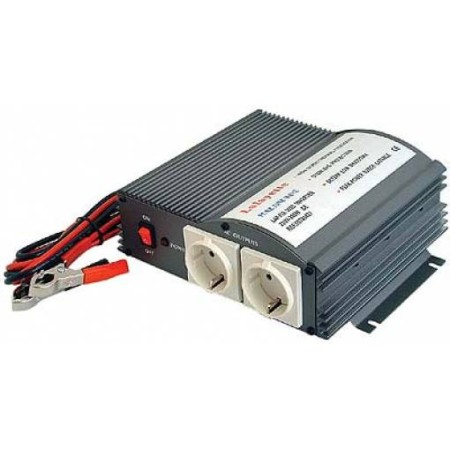

Lafayette i24-300S
INVERTER WITH PURE SINE WAVE
Overload protection and against short circuit, high temperature resistance, complete with cooling fan.
Suitable for for use with a wide range of audio/video equipment, lighting sources, tools, pumps and small appliances.
The operating principle of an inverter is very simple: using the normal battery voltage of a boat, car or camper it provides a 220V alternating current output, with a 50 Hz sinusoidal waveform, characteristic of normal domestic mains voltage.
The essential factor when choosing an inverter it is the output power (expressed in watts) that is delivered continuously; knowing in advance how many and which devices will be connected to the inverter, this will have to be chosen according to the ability to deliver a power slightly higher than that requested by the user.
Multiple devices can be connected to the same inverter: the total sum of the power required by each instrument must not exceed the maximum power delivered.
TECHNICAL FEATURES:
- Output Power: 300W continuous, 1000W peak
- Output voltage: AC 220V
- Adjustment: ±4%
- THD (max): ±4%
- Input Voltage: DC 20/30V (24V)
- Frequency: ± 0.1% 50/60 Hz
- Efficiency: 90% full load, 95% (1/3 load)
- Consumption without load: < 4W
- Operating temperature: from -15°C to +50°C
- Dissipation: by fan
- Protection against overload and short-circuit
- Dimensions: 255 (W) x 242 (D) x 80 (H) mm
- Weight: 2.13kg
Data sheet
- Guy
- Inverter
- Compatible brand
- Generico
- Sub-Categories
- Inverter
Specific References
- ean13
- 8032182230083
