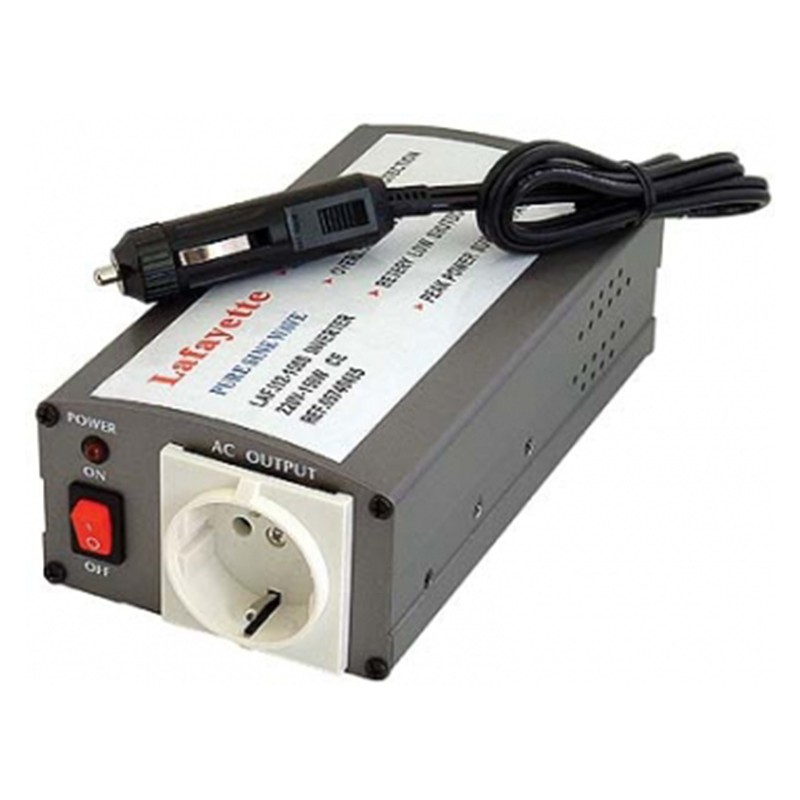

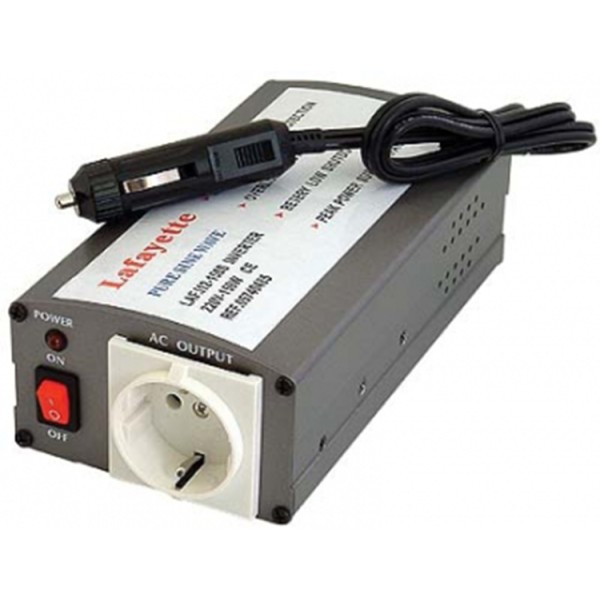

Lafayette i24-150S PURE SINE WAVE INVERTER

Overload and short circuit protection , high temperature resistance, complete with cooling fan.

Suitable for use with a wide range of audio/video equipment, lighting sources, tools, pumps and small household appliances.

The operating principle of an inverter is very simple: using the normal voltage of a battery of a boat, vehicle or camper it provides an alternating current output at 220V, with a sinusoidal waveform at 50 Hz, characteristic of normal voltage home network.
The essential factor in choosing an inverter is the output power (expressed in watts) which is delivered continuously; knowing in advance how many and which devices will be connected to the inverter, this will have to be chosen according to the ability to deliver a power slightly higher than that requested by the user.
Multiple devices can be connected to the same inverter: the total sum of the power required by each instrument must not exceed the maximum power supplied.

TECHNICAL FEATURES:

• Output power: 150W continuous, 450W peak
• Output voltage: AC 220V
• Adjustment: ±6%
• THD (max): ±4%
• Input voltage: DC 20/30V (24V)
• Frequency: ± 0.1% 50/60 Hz
• Efficiency: 90% full load, 95% (1/3 load)
• Consumption without load: < 4W
• Operating temperature: -15°C to +50°C
• Dissipation: by fan
• Protection against overload and short-circuit
• Dimensions: 209 (W) x 99 (H) x 62 (D) mm
• Weight: 1.00kg
