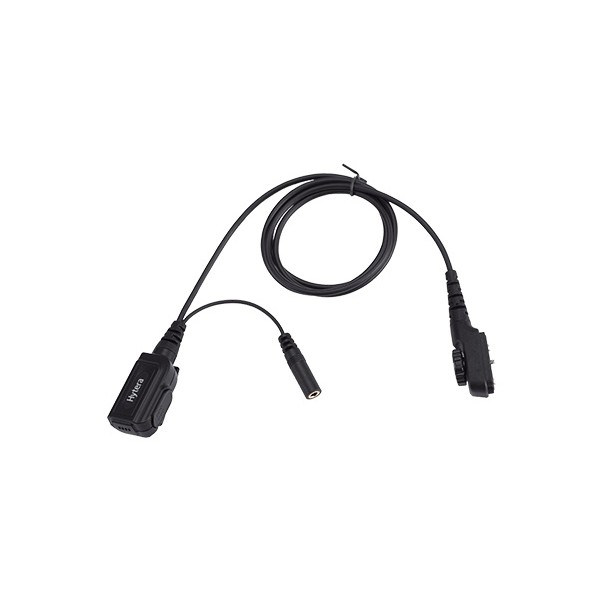

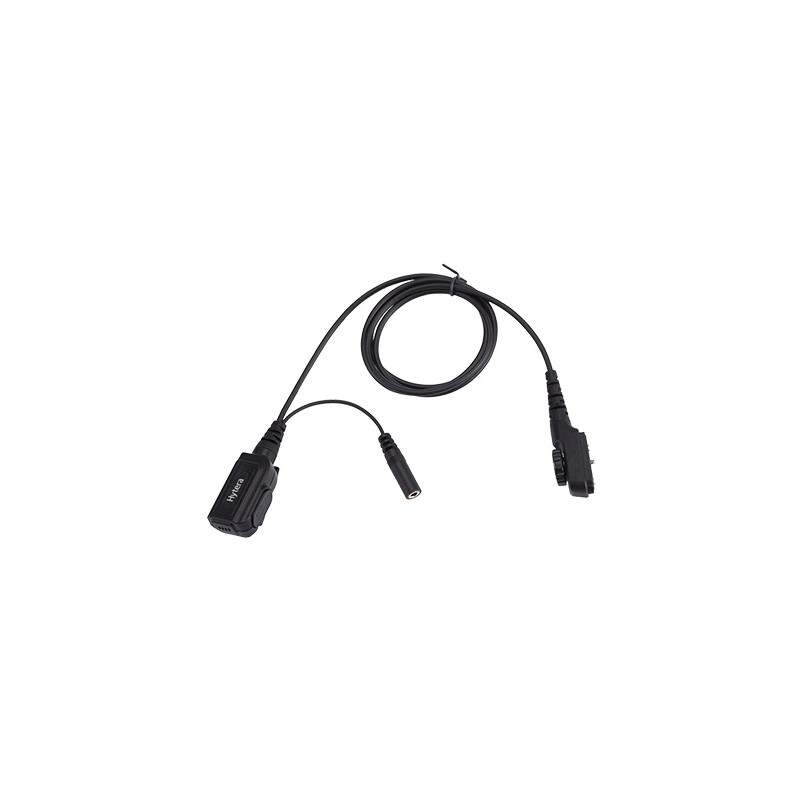

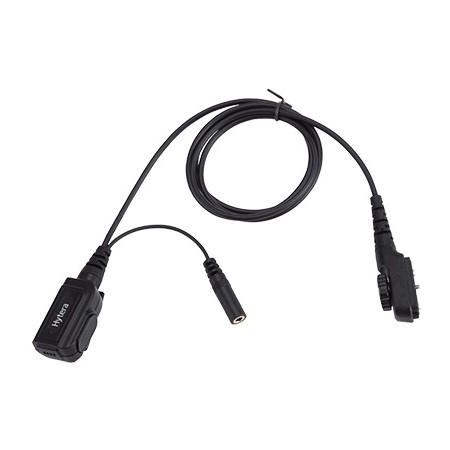

Hytera ACN-01 Basic set with PTT button and microphone

ACN-01

The ACN-01 basic set consists of a PTT button and a microphone and can be used with various Hytera headsets. It is also protected against dust and moisture according to IP54. ACN-01 supports VOX function, provided it is enabled in the radio. The 3.5 mm jack socket is used as an option for connecting the replaceable ear bud to the ACN-01. With this concept, the earphones can quickly and easily be replaced. Therefore if there is a defect, the complete audio set must be replaced.

- Split design;

- Compatible with MP3 earpiece;

- IP54 compliance;

- Reliable PU threads designed with bullet proof Kevlar material.

TECHNICAL FEATURES:

- Sensitivity : -42 ± 3dB @ 1kHz 0dB = 1V/Pa (finished product);

- Impedance : =2.2kO@1kHz;

- Operating voltage : 1-10VDC;

- PTT Rim Life : =100,000 times;

- Class Dust/Water Protection: IP54;

- Operating temperature: from 20 to 60 °C;

Application: For all users engaged in retail, entertainment industries; hospitality, catering and community management, as well as public safety zones.

Applicable to: PD70X, PD78X, PT580H and PT-580
