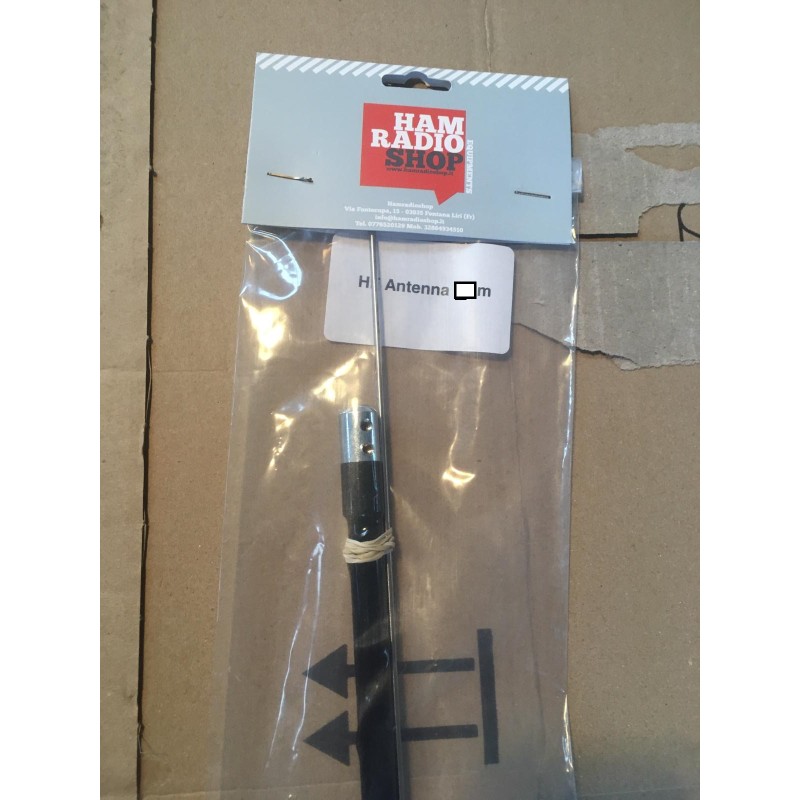

ECO ANTENNAS HAM-PRO 30 - Vehicle antenna for the 30 meter band

ECO ANTENNAS HAM-PRO 30 - Vehicle antenna for the 30 meter band

The range of ECO ANTENNE HAM-PRO HF mobile antennas are high quality antennas, heavy duty for HF amateur radio bands.
In our range there are 11 models, starting from 4m, up to 80m. They are designed to work on the voice part of the band.
Bandwidth and SWR: SWR may vary depending on the mounting position. The SWR at resonance should be 1.5: 1 or lower if properly tuned. The stylus is "field" adjustable for Lower SWR and is double-locked with stainless steel grub screws. If requires more bandwidth, an ATU may be required.
Copper wire of suitable thickness is used in the construction of the resonator, helically wound onto a fiberglass mast and finished in Sleek Black. THE fittings are brass and the 1.2m long stainless steel stylus that inserts in the resonator ensures that the antenna works perfectly.

characteristics:

Applicable power: 250W
Length: approximately 2.40 meters
Impedance: 50 Ohms
Frequency: 10.100-10.150 MHz
Connector: 3/8 UNF
