HVU-8 Vertical Antenna 3.5/7/14/21/28/50/144/430 MHZ

Ref: HVU8

Last items in stock
€298.00
Tax included
rating No review at the moment
Usually ships within 24 hours.
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.

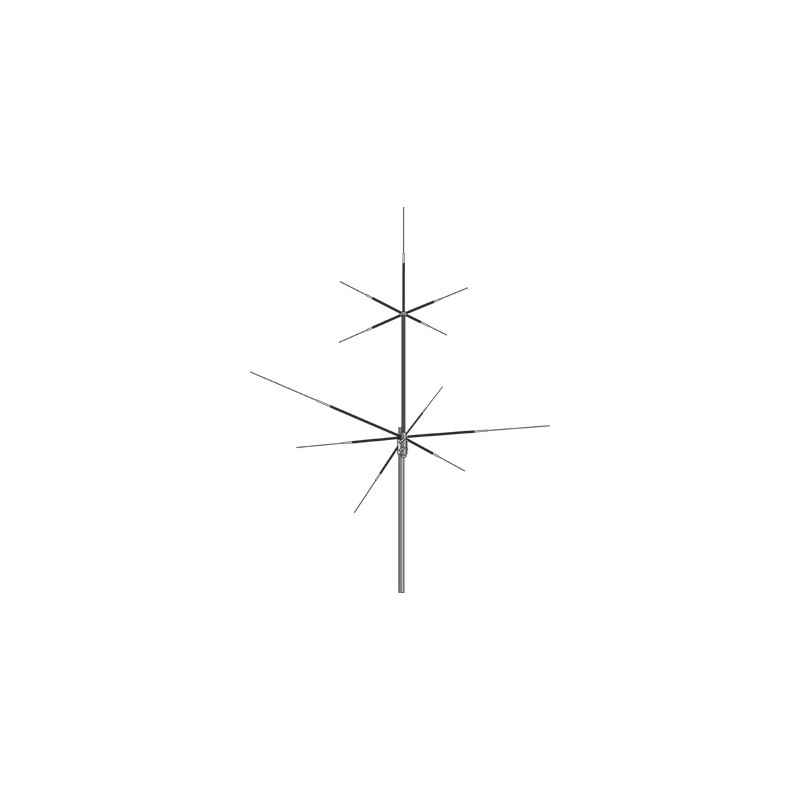

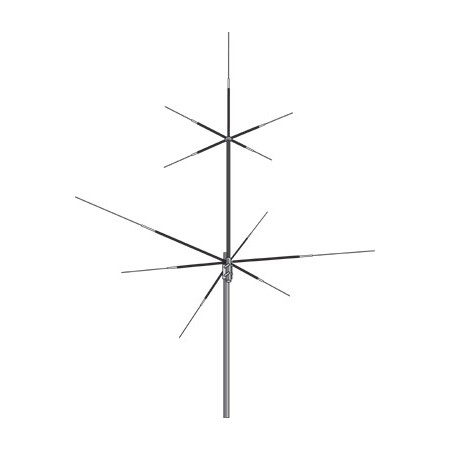

HVU-8 Vertical Antenna bands 3.5/7/14/21/28/50/144/430 MHZ

The HVU-8 is a unique and ultra-compact HF VHF and UHF vertical, developed for installations in confined spaces, such as apartments and condominiums or for temporary or portable use. The installation is easily achievable and convenient as the HVU-8 is only ½ the height and weight of HF vertical antennas. It covers the 80/40/20/15/10/6/2M/70 centimeter bands, excellent for use with new multi-band HF / VHF / UHF radios. Each HF and 6M band has its own independently tuned radiator and radial system, while the main antenna mast is pre-tuned for constant 2M/70cm operation. Of course, the bandwidth is very narrow and the radiator element requires time and patience to tune but the results are amazing. The HVU-8 is equipped with U-brackets, for easy installation .

TECHNICAL FEATURES
Configuration: 1/4λ (3.5/7/14/21/28/50 MHz)
1/2λ (144 MHz)
2x 5/8λ (430 MHz)
Maximum applicable power: 200W SSB
50W CW
150W FM (3.5/7/14/21/28/50 MHz)
I earn: VHF: 2.15 dBi
UHF: 5.5 dBi
Connector: SO-239 (MJ)
Length: 2.7 m
Ø mast: 30 - 45 mm (13 sections)

2.4kg

HVU8
1 Item

Data sheet

Mpn
HVU-8
Guy
HF Verticali
VHF/UHF/SHF Base
Compatible brand
Generico
Sub-Categories
HF Verticali

Specific References

MPN
HVU-8
