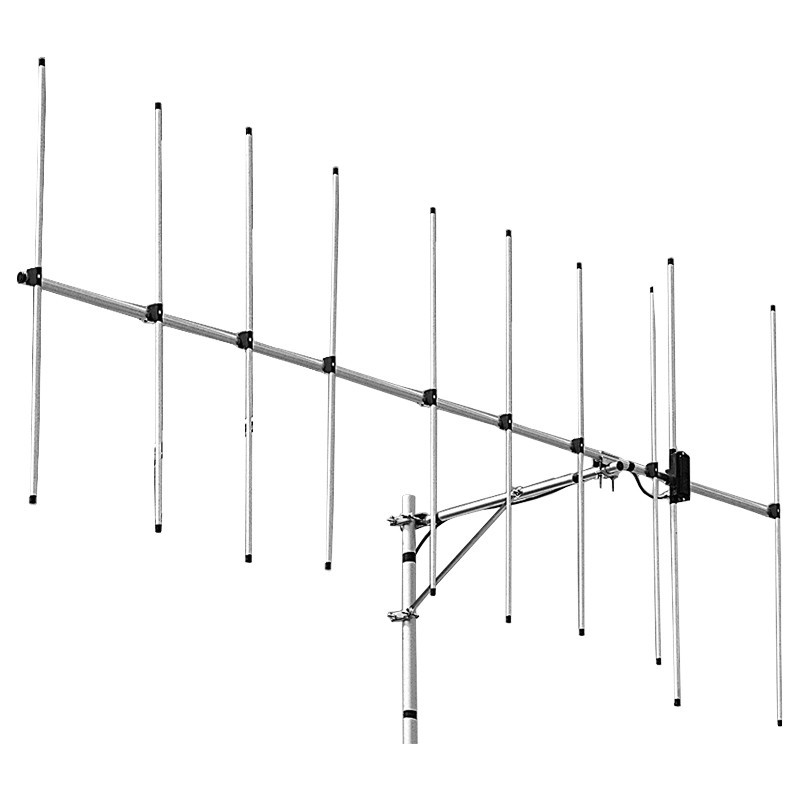

Diamond A-144S10R2 - 10 element 144MHz directive antenna
Ref: A144S10R2
€75.10
Tax included
Read the 6 reviews
Usually ships within 24 hours.
Read the 6 reviews
Average rating:
5/5
Number of reviews: 6
A-144S10R2
10 element 144MHz directive antenna
- Gain: 11.6 dBi
- Max power: 50 Watts
- Impedance: 50
- VSWR: 1.3:1
- Weight: 1.1kg
Technical features:
| model (frequency) | A-144S5 144-146 | A-144S10R 144-146 | A-1430S7 144+430Mz | A-430S10 | A-430S15 |
| Elements | 5 | 10 | 3 (144) + 5 (430) | 10 | 15 |
| Gain (dBi) | 9.1 | 11.6 | 7.5 (144) 9.3 (430) | 13.1 | 14.8 |
| Max power (Watt) | 50 | 50 | 100 | 50 | 50 |
| Impedance (Ω) | 50 | 50 | 50 | 50 | 50 |
| VSWR | 1.3:1 | 1.3:1 | inf 1.5:1 | 1.4:1 | 1.4:1 |
| Weight kg) | 0.63 | 1.1 | 0.950 | 0.64 | 0.97 |
| Dimensions (mm) | 950 x 1090 | 2130 x 1090 | 1250 x 1020 | 1190 x 370 | 2245 x 370 |
| Mast diameter (mm) | 25~47 | 25~47 | 25-62 | 25~47 | 25~47 |
| Connector | MJ | MJ | MJ | MJ | MJ |
| F/B (dB) | =< 14 | < 15 | ≤ 11.5 (144) ≤ 8 (430) | < 15 | < 14 |
| Wind surfaces (m²) | 0.1 |
A144S10R2
19 Items
Data sheet
- Mpn
- A144S10R2
- Guy
- VHF/UHF/SHF Base
- Compatible brand
- Generico
- Sub-Categories
- VHF/UHF/SHF Base
Specific References
- ean13
- 4936312014502
