Ref: MICRON

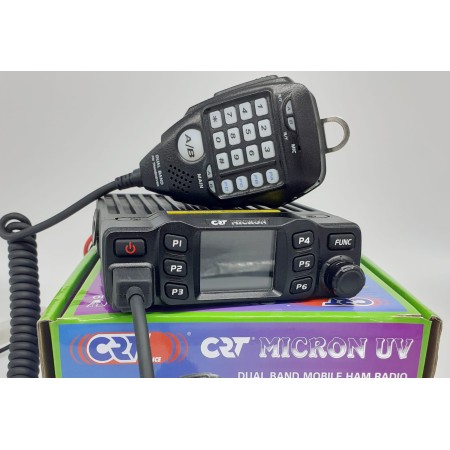

Immediately availableSmall size transceiver for the 144-146 MHz band - 430-440 MHz <20w>
Data sheet
AMATEUR RADIO standard (restriction: in use with mandatory amateur radio emission)
FM Mode (Wide/Narrow)
Range RX / TX frequency: 144-146 MHz / 430-440 MHz
Power LOW: 5 W / MEDIUM: 15W/HIGH: 25W VHF - 20W UHF (large cooling box)
Voltage input voltage 13.8 V DC
200 channel memories
Distance between channels 12.5 / 20/25 KHz
Increment step 2.5 / 5 / 6.25 / 10 / 12.5 / 20/25/30/50 KHz
UU / UV / VU / VV working
RELE MOD / OFFSET Yes: Accesses a relay with two different frequencies
TONE BURST Yes: 1000Hz / 1450Hz / 1750Hz / 2100Hz
CTCSS / DCS (encoder / decoder) 52 CTCSS / 1024 DCS: sub-audio code to activate the repeater as selective tone
DTMF (encoder) Yes: tones selected to activate the repeater, the Internet gateway and other elements
DOUBLE CLOCK function Yes
TOT function Yes: timeout timer
CTCSS / DCS SCAN function Yes
Function SCAN Yes: automatic search for busy channels
REVERSE function Yes: the frequency RX of the current channel will be switched to the TX frequency
TALK AROUND function Yes: Change RX/TX frequencies and CTCSS/DCS code to avoid repetitive use
Various features Ability to block startup by code (default code 123456)
Keys bonus backlit + jack socket for external speaker + 6 function keys from PF1 to PF6 with 3 functions each + customizable menu order
Mike With speakers built-in and programmable keys
Display Multifunction color TFT display large size adjustable 180°
RX signal level display + TX power + channel number or frequency + various functions ...
Cable Options programming + software
Software programmable Yes
Includes cable detachable power supply + fixing bracket + screws + microphone holder + manual in French and English
Measures 122 (L) x 165 (W) x 35 (H) mm
Weight 480 gr
2 year WARRANTY
Data sheet
