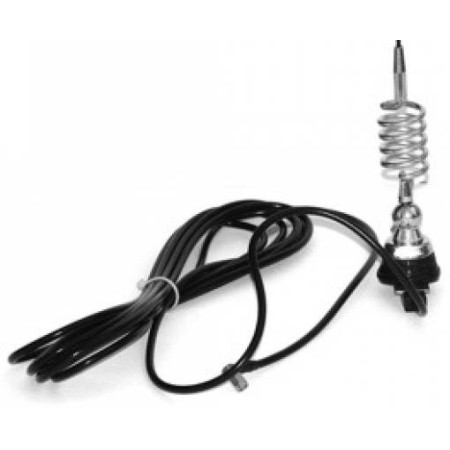

Caletti - Atlas Antenna 5/8 VHF civil band adjustable SMA connector

Ref: CALETTI/ATLAS

Last items in stock
€44.99
Tax included
rating No review at the moment
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

CALETTI
ATLAS/A SMA 5/8 VHF civil band calibratable SMA connector
Antenna for vehicle use, 5/8 wave length, composed of a 17/7 PH stainless steel rod, adaptation inductance and equipped with an adjustable joint to allow the correct inclination regardless of the inclination of the base support surface.

The base was designed and built to be fixed from the outside of the bodywork and is equipped with 5 m of RG58 C/U coaxial cable compliant with MIL standards (MIL-C-17).

The use of high quality materials, used in a structure designed to obtain excellent resistance and robustness performances, guarantees to satisfy the most demanding operational requests with maximum efficiency, reliability and durability.

Antenna for mobile use, 5/8 wavelength, fitted with stainless steel 17/7 PH rod, matching inductance and adjustable balljoint with screw for correct positioning of the whip independently on the tilt of the mounting plane.

The mounting base has been designed and manufactured in order to be mounted from the outside of the vehicle and it is provided with 5 m. of MIL spec RG58 C/U coaxial cable (MIL-C-17).

The use of high quality materials and their use in a structure designed in order to meet the best performances in strength and ruggedness, guarantee and satisfy the most strong structure guarantee and satisfy the most demanding operating requirements with maximum efficiency, reliability and life.


CHARACTERISTICS:

- ATLAS/A model ;

- Electrical length : 5/8 ?;

- Use : mobile;

- Frequency : 144-174 MHz;

- VSWR impedance :<1.5:1;

- Total bandwidth : approximately 2%;

- Tuning : by cutting the stylus;

- Gain : 2 db compared to 1/4 ?;

- Maximum power : 100Watt;

- Stylus : stainless steel;

- Connection type : 5 meters rg-58 C/U cable (MIL-C-17);

- Fixing hole : 21 or 24 mm;

- Length : 1340 mm;

- Weight : 420 g.

CALETTI/ATLAS

Data sheet

Guy
Civile
VHF/UHF/SHF Veicolari
Compatible brand
Generico
Sub-Categories
Civile
VHF/UHF/SHF Veicolari

Specific References

ean13
0644730929868
