    BHI PSU12-2A-WW - International universal power supply 12V DC 2A 24W
    BHI PSU12-2A-WW - International universal power supply 12V DC 2A 24W

BHI PSU12-2A-WW - Alimentatore universale internazionale 12V DC 2A 24W

Ref: PSU12-2A

Coming soon, buy it now!
€18.00
Tax included
rating No review at the moment
- Ask about delivery times
Quantity

Guarantee safe & secure checkout

  • International universal power supply 12V DC 2A 24W, center positive 2.1mm

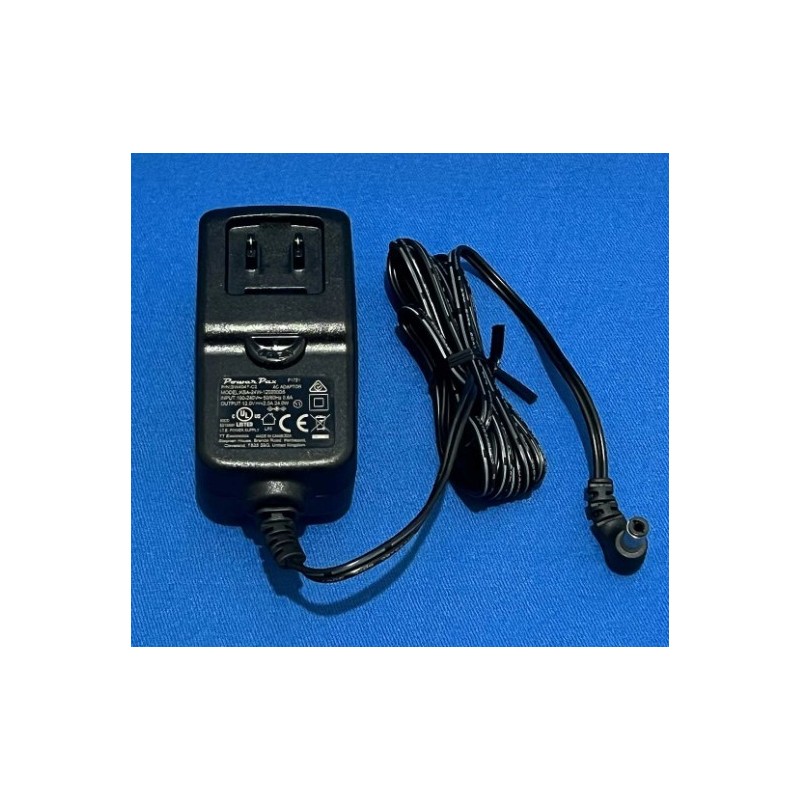

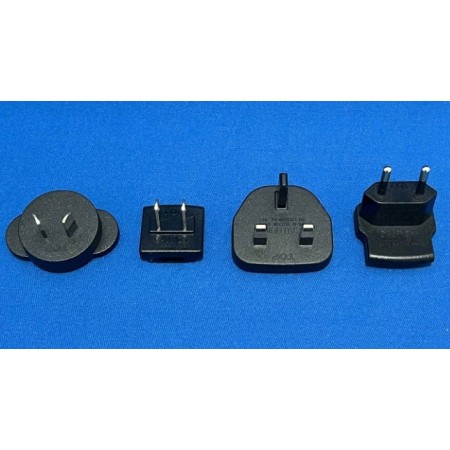

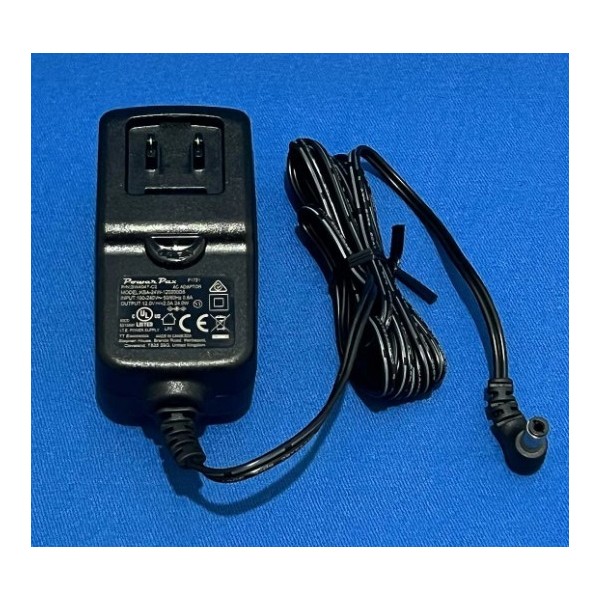

    This 12V DC 2A universal switching power supply has a 90-264V AC input and comes complete with UK, Europe, USA and Australia pins as standard. It comes with all international safety approvals making it suitable for use worldwide. We tested it to make sure it worked well and that it was a good quality, low noise power supply that would work well with all our major DSP noise canceling units.

    • Regulated 12vdc output (2A max)
    • Current Min. 0.01A
    • Line regulator +/-5% at nominal load
    • Total power regulation +/-5% at 0—100% load
    • Ripple and noise (mV pp) 120mV PP
    • Overcurrent and short circuit protection
    • Case dimensions 105 x 52 x 40 mm excluding AC pins
    • DC cable 1.8 meters and DC plug 2.1 x 5.5 x 12 mm +ve center
    • Rated input voltage 100-240V AC
    • Nominal frequency 50-60Hz
    • Efficiency meets ErP stage 2
    • Power consumption without load
    • Maximum operating temperature from 0 to 40 degrees C
    • Storage temperature -20 to 80 degrees C
    • Operating humidity 10% to 90%
    • CE, TUV, C-Tick, cUL safety approvals
    • EMC Standard EN55022:2006+A1:200 / EN6100-3-2 / EN6100-3-3
