    AV-1 KM HANDS-FREE PTT HANDS-FREE KIT FOR CAR YAESU 6-pole harness

AV-1 KM HANDS-FREE PTT HANDS-FREE KIT FOR CAR YAESU 6-pole harness

Ref: AV1KM-YAESU6

Out-of-Stock
€62.00
Tax included
rating No review at the moment

Quantity

Guarantee safe & secure checkout

AV-1 KM HANDS-FREE PTT HANDS-FREE KIT FOR CARS

YAESU 6-pole mic-compatible harness. MH-48 for the following devices:

FT-7800/7900/8800/8900/1900/2900/2800/1802/FTM-400/100/3100/3200 ETC


The highway code in many countries prohibits the use of two-way radios during the driving. To be able to continue using an amateur radio transceiver while driving, you need a hands-free kit that does not distract the driver and leave your hands free.

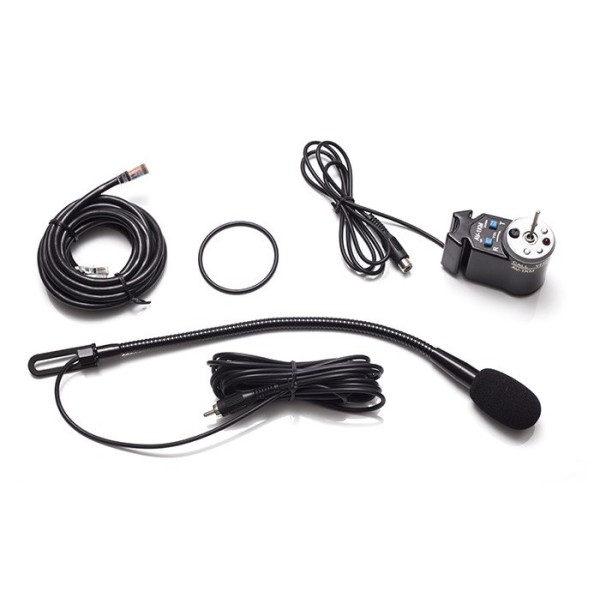

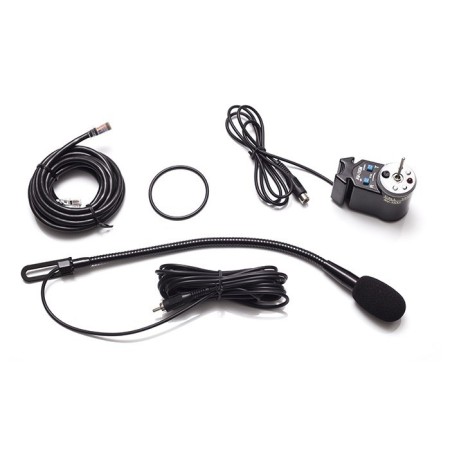

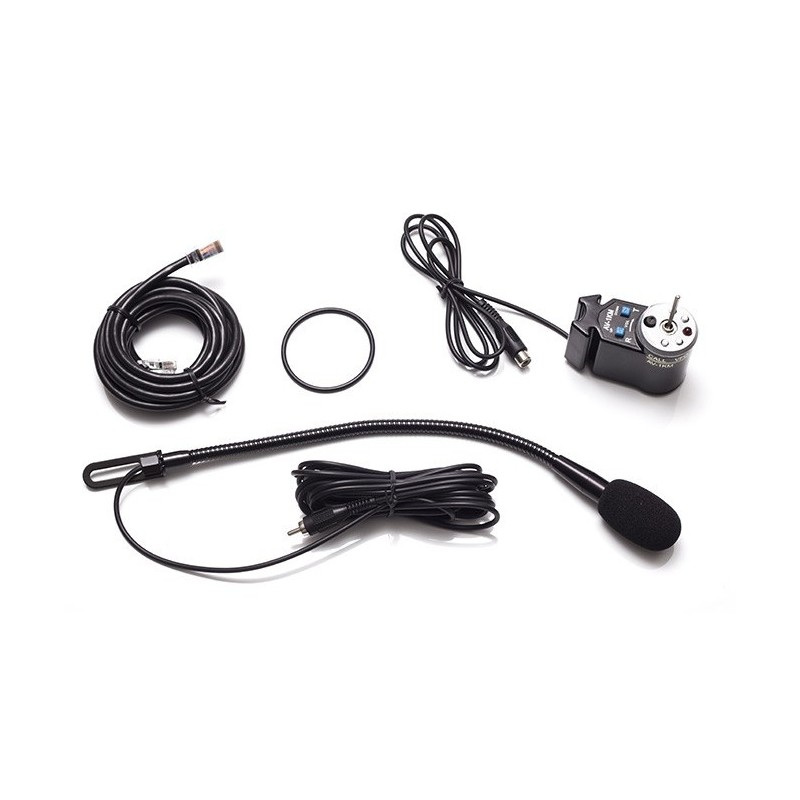

The AV-1KM hands-free kit consists of a microphone placed at the end of a long "goose neck", a convenient PTT switch and a cable suitable for the radio model in use. The microphone is usually fixed on the sun visor inside the car; Thanks to the long, flexible gooseneck the microphone can be positioned in so that it does not obstruct the view. The bistable PTT is installed in one place appropriate, such as the gear lever. Due to the bistable function of the switch, simply touch it very briefly; the movement of the hand it is the same as changing gear. If the radio offers the Vox function, this is of course can be used.

The AV-1KM hands-free kit is supplied with several cables, each suitable for a certain model of transceiver or to a certain manufacturer. This greatly facilitates a quick installation, no soldering of any wires is required. The microphone is of type Electret (AKA type capacitor), the necessary supply voltage is taken from the radio's microphone connector. This type of microphone is used by almost all FM handheld transceivers. With the exact position of the microphone close to the mouth, most environmental noises can be suppressed. Microphone gain can be easily adjusted for best modulation. The PTT switch box also offers other controls such as Up/Down buttons, if your radio supports these functions. A red LED indicates the status of the PTT, this helps avoid inadvertent transmissions.

The AV-1KM hands-free basic kit contains the cable for the radio with the connector modular (RJ). This is the most used cable for mobile transceivers in FM. For Icom or Kenwood radios with 8-pin round connector (Foster), this is required an additional adapter cable.

Flexible stem microphone, unidirectional, with volume control.
Sun visor mounting bracket
Box with PTT and controls attachable to the gearbox with Velcro belt.
DC power from the microphone jack of your radio.
UP / DOWN directly from the PTT box.
Hands-free PTT with VOX function
Adjustable Mic Gain.
Flex Microphone: 230mm (L) x 8mm diameter
PTT box cable <> Microphone: 3m
PTT box <> Radio cable: 1.5m
PTT box dimensions: 54 (W) x 22 (H) x 69 (diameter) mm.

Attention:

The microphone mounts under the sun visor bulkhead bolt. To make sure that it is securely connected and that the cable is routed securely. Make sure that the microphone is angled so that it does not interfere with forward vision.

AV1KM-YAESU6

Data sheet

Mpn
AV-1KM YAESU6
Guy
Kit vivavoce per auto
Compatible brand
Generico
