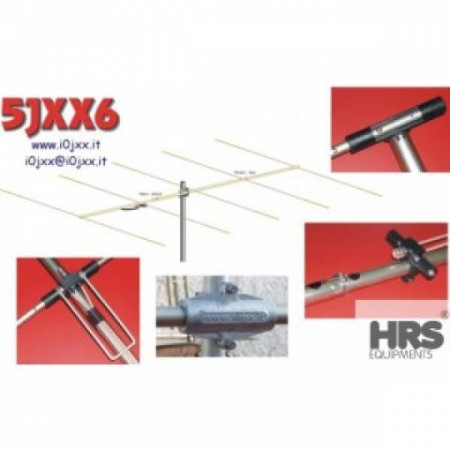

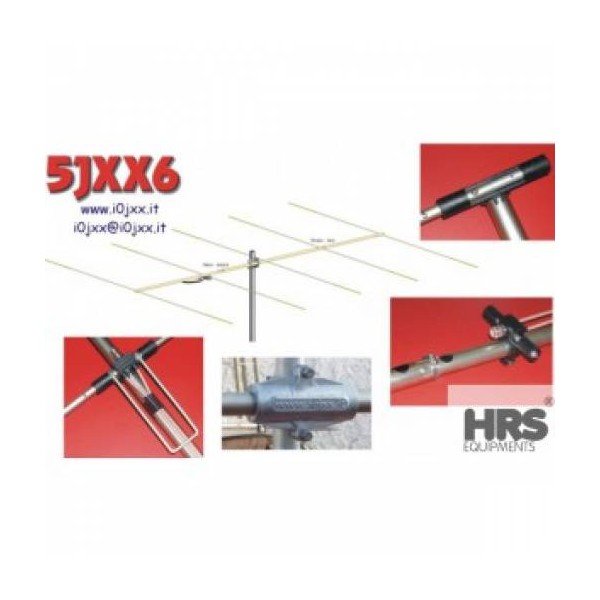

5JXX6 50Mhz directive antenna 5 elements
    5JXX6 50Mhz directive antenna 5 elements

5JXX6 50Mhz directive antenna 5 elements

Ref: 5JXX6

Immediately available
€235.00
Tax included
rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


5JXX6 50Mhz directive antenna

- Gain : 8.98 dBd/11.12 dBi;

- Angle -3dB E/H : 47.8° - 58°;

- Spacing E/H : 7.39 - 6.17 m;

- ROS : 1:1.2;

- Boom length : 4.83 m - 0.81 λ;

- Boom diameter : 25 - 30 - 25 mm;

- Element diameter : 12 mm;

- Dipole : Hairpin;

- Connector : N precision;

- Max power : 1000 W;

- Balun 1:4: RG142/U;

- Max connection : 75 mm Ø MAX;

- Weight : 4.9 kg;

- Wind area : 0.32 m².

5JXX6
4 Items

Data sheet

Guy
VHF/UHF/SHF Base
Compatible brand
Generico
Sub-Categories
VHF/UHF/SHF Base

Specific References

ean13
0644730926737
Filter reviews
(4)
(0)
(0)
(0)
(0)
(0)
Reset

ANTENNA 5JXX6
rating 5
TUTTO OK PRECISO E PUNTUALE NELLA SPEDIZIONE
Antenna 50 mhz 5 elem.
rating 5
Ottima
Fantastica
rating 5
C\'è poco da dire: le antenne JXX sono sinonimo di qualità e di eccellenza e fanno il loro lavoro egregiamente.
buono
rating 5
non ancora montata !!!
