Ref: 1258MkIIvset
Immediately availableRRC - 1258MkIIs v7 is sold in pairs assembled tested but not configured . Included in the package is a USB cable , power cable ( 2 pcs ) , 0.5m Cat 5 cable and a 2xRJ -45 extender .
Pin for WiFi unit is in place
Check the accessories page for specific radio cables .
RRC-1258MkIIs (with dual RX) are sold in pairs assembled tested but not configured. The configuration service can be purchased separately on our website.
Included in the standard product package: 1 USB cable, 2 power cables, Cat 5 cable to make an Icom IC 706 style TX cable and a 2xRJ-45 extender.
Independent radio control boxes for using the client without using a PC are available on our site.
Cables for the main radio models can always be purchased on Hamradioshop.
The Remoterig RRC-1258MkII is the main product which can be used in most system configurations. Learn more on the How it works page and the system configuration page.
RRC-1258MkIIs (dualRX) is sold in pairs assembled tested but not configured. Included in the package is one USB cable, Power cables (2 pc), Cat 5 cable for making IC-706 cable and a 2xRJ-45 extender.
Separate Control- or Radio boxes are also available in the Webshop.
Cables for the major Radio models can be bought from the Webshop
Technical Data:
Product/Art no: |

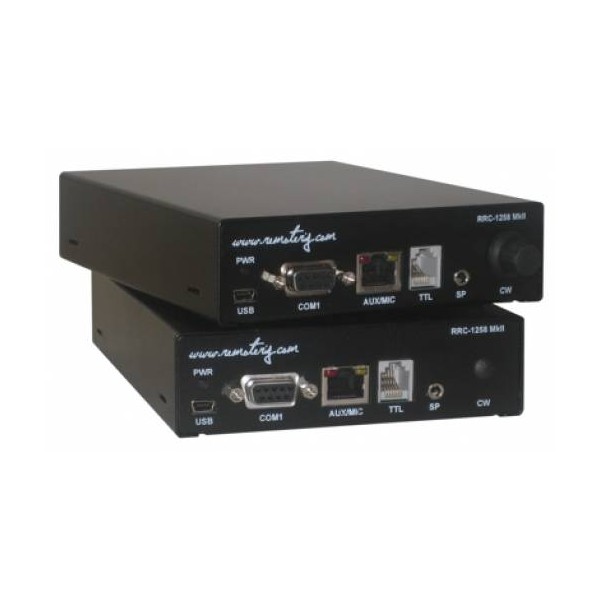

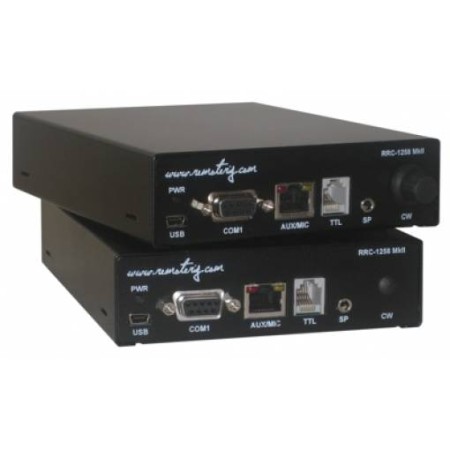

Remoterig RRC-1258MkII |
Dimensions (L x H x D): |
165 x 140 x 34mm |
Weight: |
2 x 250 g (excl. power supply.) |
IP class: |
IP20 |
Power supply requirement: |
10-18V DC via DC Plug 2.1mm/5.5mm |
Current drain at 13.8V: |
App. 160 mA up to app. 600 mA depending on audio level and ev. backlighter |
Network connection: |
RJ45 T-Base10/100 |
Speaker amplifier: |
2W (8 ohms) |
Mic inputs: |
Dynamisk eller Electret med DC feeding |
Radio protocol (detachable front) |
Kenwood TS-480, TS-2000 |
Data sheet
Specific References
