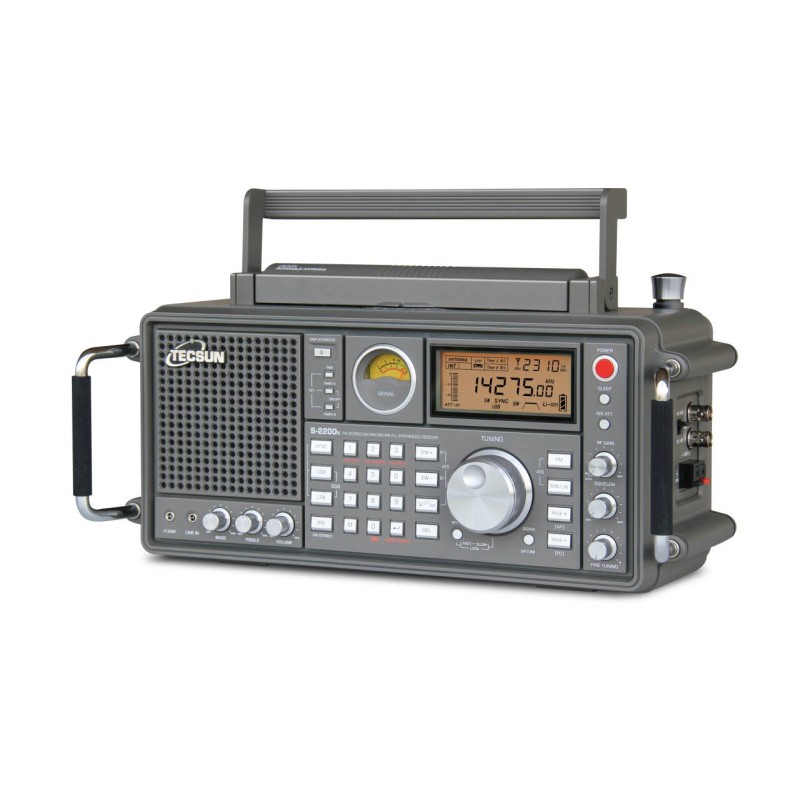

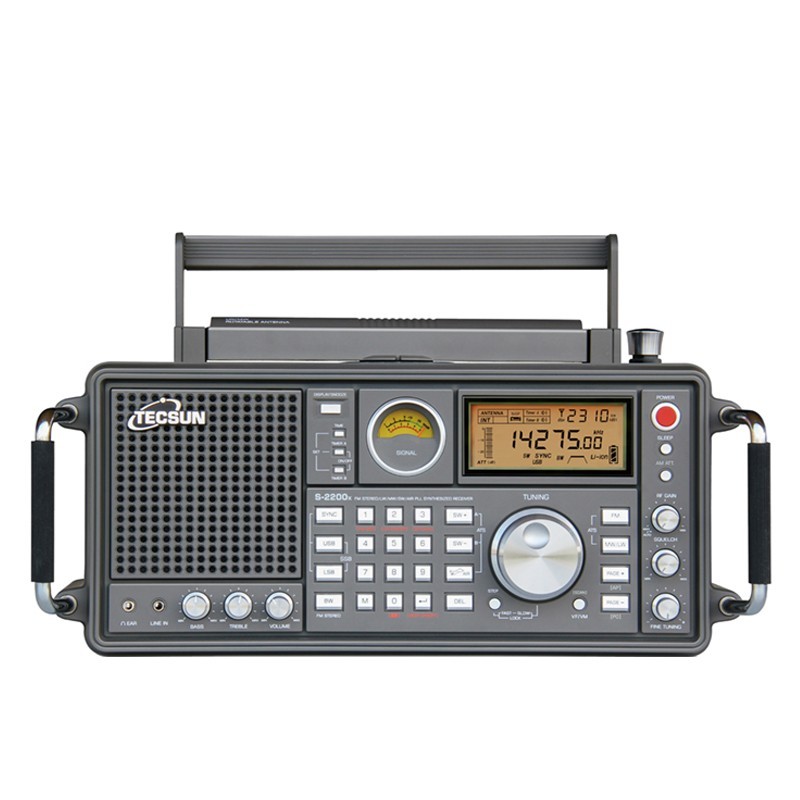

TECSUN S-2200 X Base / Portable Receiver 1.6-30 MHz SSB Double Conversion PLL FM/MW/SW/LW Air Band

TECSUN S-2200x is the new DSP RECEIVER from Tecsun!

It is the technical evolution and successor of the very famous S-2000 double conversion radio receiver. This new version has been significantly improved with a triple conversion High-IF receiver and DSP decoding. Ideal for a base station, it can also be transported to any other location thanks to its fairly small size! It can be used to listen to FM, long waves (LW), medium waves (MW/AM), short waves (SW) and VHF airband, and is able to operate in single sideband (SSB). Like the well-known Tecsun PL-990X and H-501X, this one too The S-2200x features a high-IF analog circuit and DSP triple-conversion decoding technology.

It has great performance in terms of sensitivity, selectivity and contrast of mirror station interference (image rejection). Like other Tecsun models, it is equipped with a variety of “hidden features”.

2 x Tecsun 18650 4.2V (3.7V nominal) 2600mAh batteries USB charging cable (requires any good quality 5V/2A USB adapter, not supplied) 'last> English manual and ITALIAN MANUAL on CD 'last>

Special Features: 'last>

5 AM Bandwidth Settings 'Latest>

Independent main and fine tuning knobs 'last>

Power the device with 4 x D batteries or 2 x 18650 batteries 'latest>

Squelch and RF Gain Control 'last>

SSB (USB/LSB) with 10Hz fine tuning increments 'last>

Synchronous detection 'last>

Adjustable ATS signal capture sensitivity 'last>

360° Rotatable MW/LW Antenna 'last>

Antenna sockets for FM / AIR / SW / LW / MW (AM) 'last>

Airband (VHF): To intercept radio communications in aviation. 'last>

Using the S-2200x airband function, it is possible to intercept communications between pilots and air traffic control, but also other communications from commercial and general aviation, radio navigation aids and air traffic control. 'last>

n FM wide the default frequency range for the EU market is set to 'last> 'last>

• 87.0 – 108 MHz Quick tuning steps of 0.1 MHz or 0.05 MHz (depends on FM range and MW step setting).
  Slow/fine tuning steps of 0.01 MHz.
  MW: 520 – 1710 kHz 520 – 1710 kHz (10 kHz tuning steps) 522 – 1620 kHz (9 kHz tuning steps) Fast tuning steps of 9 kHz or 10 kHz. Slow/fine tuning steps of 1 kHz.
  LW: 50 – 522 kHz 100 – 519 kHz (when MW tuning is set to 10 kHz) <50 – 522 kHz (when MW tuning is set to 9 kHz) Fast tuning steps of 9 kHz. Slow/fine tuning steps of 1 kHz.
  SW: 1621 – 29999 kHz 711 – 29999 kHz (when MW tuning is set to 10 kHz) 1621 – 29999 kHz (when MW tuning is set to 9 kHz) Fast tuning steps of 5 kHz. Slow/fine tuning steps of 1 kHz.
  AIR: 118 – 137 MHz

Tuning steps of 0.025 MHz. Fine tuning steps of 0.001 MHz.
Tuning Methods Direct frequency entry on the keypad Auto scan: Stops for 5 seconds on each signal found Manual tuning with jog dial Methods for storing stations (memory): Manual store: Manually tunes in stations and stores them in memory Auto scan and manual store Automatic tuning store (ATS): Automatically tunes in and stores signals Auto Paging (AP) ATS: Creates time-specific memories for MW and SW

9150 station memories Manual or automatic memory browsing Auto sort memory - organizes memory and removes duplicate frequencies
Antenna attenuation
Squelch control knob
RF Gain Control Knob: Automatic or Manual Levels
Synchronous detection
LW/MW bandwidth selection: 1.0, 2.3, 3.5, 5.0 and 9.0 kHz
SW/AIR bandwidth selection: 1.0, 2.3, 3.5, 5.0 and 6.0 kHz
SSB bandwidth selection: 0.5, 1.2, 2.3, 3.0 and 4.0 kHz
LCD Backlight: Always on or auto off after 5 seconds LCD display shows signal strength and signal to noise ratio
Clock display (24-hour format)
Two independent alarm settings (Timer A and Timer B) Alarm clock (via radio)
Sleep Timer (1-120 minutes): Automatically turns off the radio after a preset time
Alarm snooze function Alarm sleep timer (1-60 minutes): Setting the alarm duration
Keypad lock 360° rotating MW/LW antenna
Telescopic antenna for FM, shortwave and air band (approx. 100cm / 39 inches)

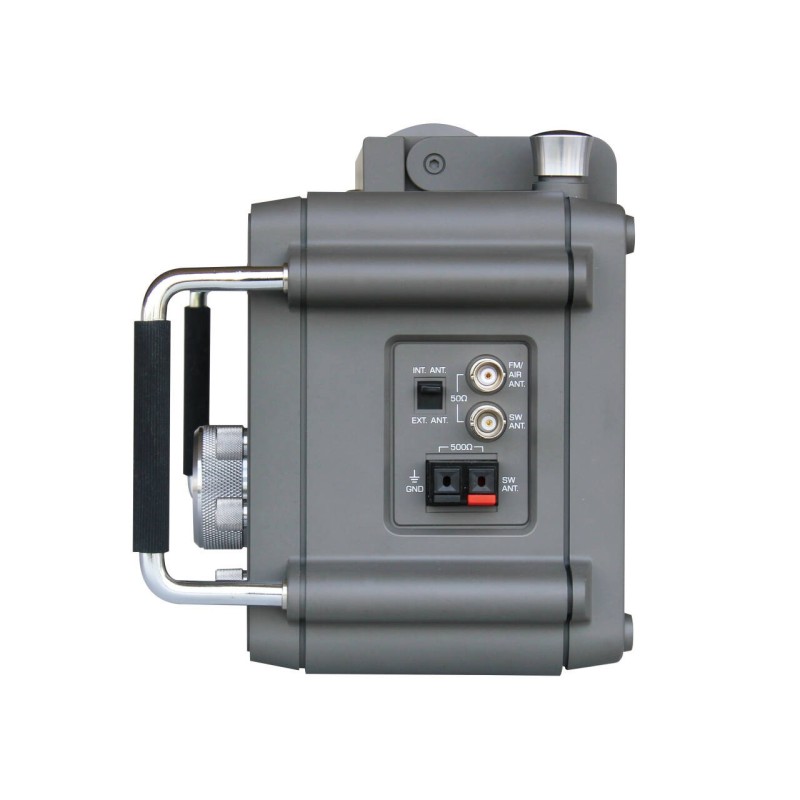

External antenna socket SW: 50 Ohm (BNC type), 500 Ohm (black/red spring terminals)
External FM/AIR antenna socket: 50O (BNC type)
MW/LW external antenna socket: f 3.5 mm (1/8 in)
Headphone jack: 32-300O, f 3.5 mm (1/8 in)
FM stereo via headphones
Independent main and fine tuning knobs
Volume control knob
Independent treble and bass control knobs
S-meter
Built-in speaker: 8Ohm / 2W / f 4 in
Audio input jack (line input): For use as an active speaker (f 3.5 mm, 1/8 in)
Audio output jacks (RCA L/R): For use as a radio tuner for your home audio system
Battery selection switch: choose D (R20/UM1) or 18650 type batteries

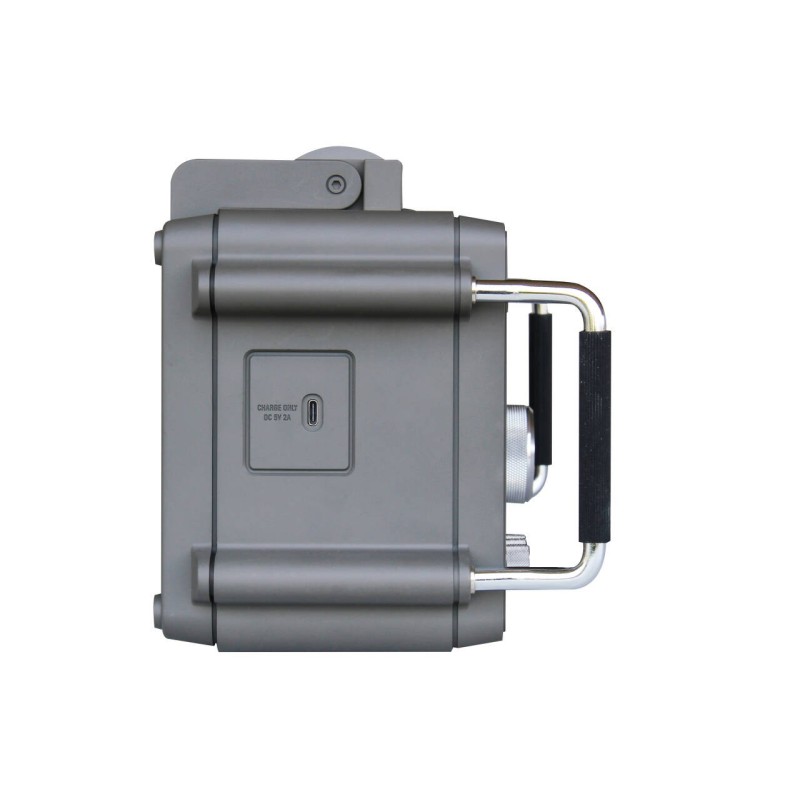

DC 5V/2A charging socket (USB-C)
Battery power only: 6 V: 4 x D-type batteries (R20/UM1).
Suitable for alkaline, Ni-MH and lithium batteries, but the total voltage must be equal to or less than 6V
Charging 18650 batteries: DC 5V / 2A, charging socket from USB-C mains adapter (not supplied),
It is possible to use it WITH OR WITHOUT BATTERIES INSERTED during the charging phase as long as the USB power supply is of good quality, although not recommended for the duration/life of the batteries... Charging is very fast and you do not feel the need to power it during use!
