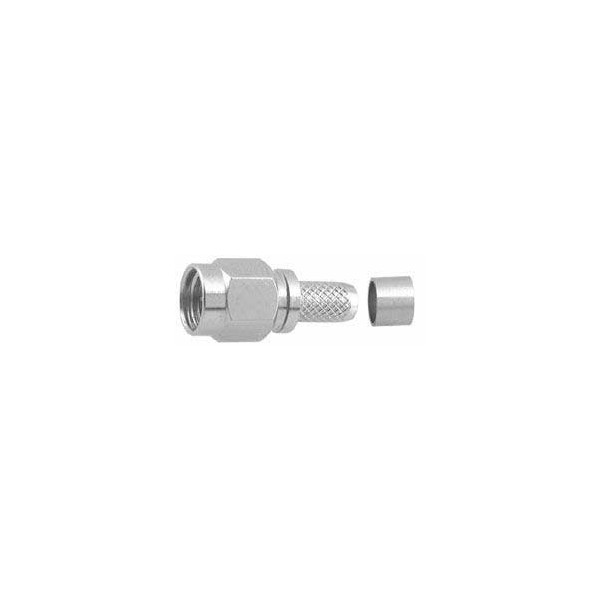

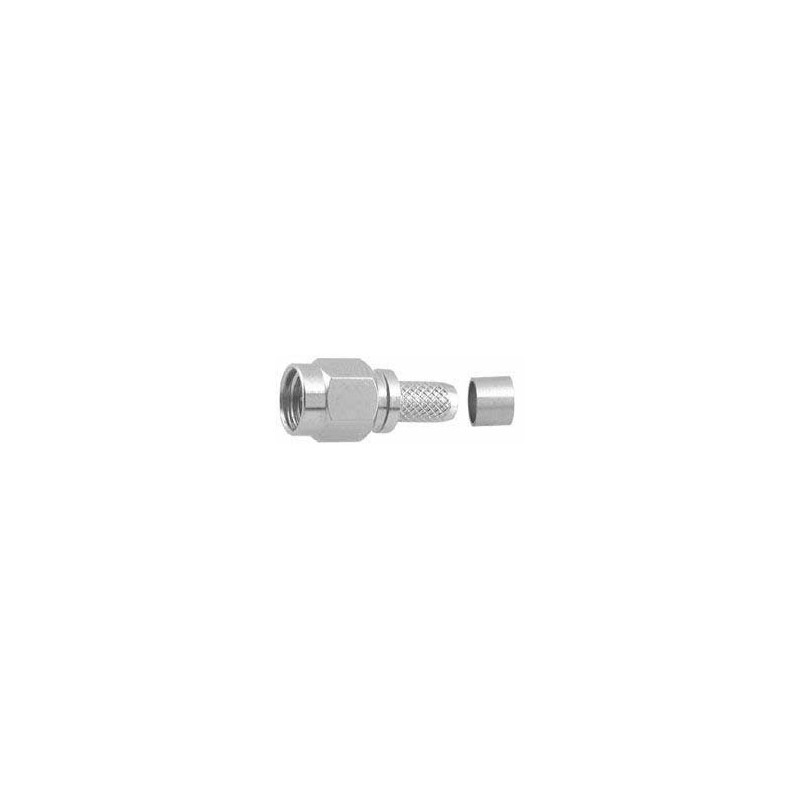

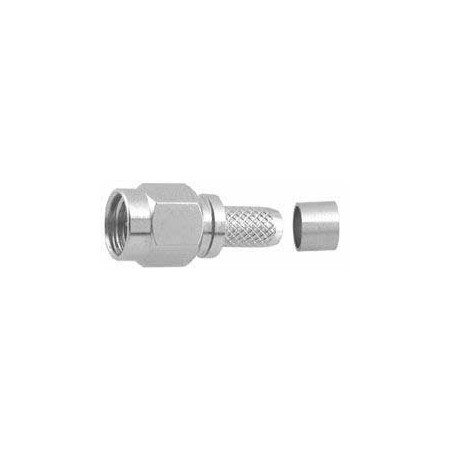

SMA male crimp connector for cables 5 Ø mm
Ref: smaM/crimp
Immediately available
€2.50
Tax included
No review at the moment
Usually ships within 24 hours.
Crimp SMA male connector for RG-58U xt-2400 and all cables Ø 5 mm
TECHNICAL SPECIFICATIONS | |
Body: | nickel-plated brass |
Isolation: | derlin |
Impedance: | 50 Ω |
Frequency range: | 0 - 18GHz |
Maximum applicable voltage: | AC 500V |
Maximum applicable voltage for 1 minute: | AC 1000V |
Contact resistance: | 3.0 mΩ max. |
Insulation resistance: | 5000MΩ min. @DC 500V |
smaM/crimp
21 Items
Data sheet
- Mpn
- SMA Maschio Crimp
- Guy
- SMA
- Compatible brand
- Generico
- Sub-Categories
- SMA
