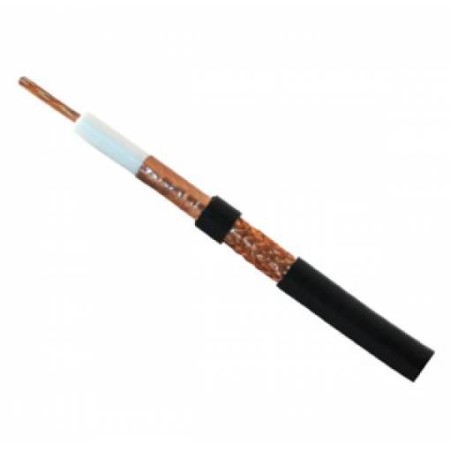

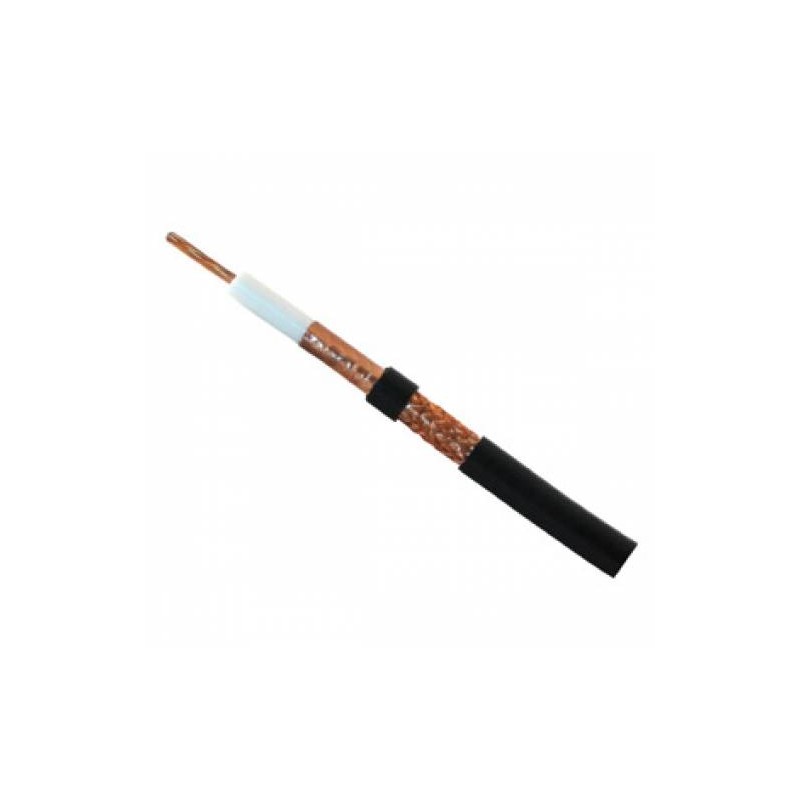

RF-400UF - LOW LOSS Ø 10.3 mm - Double shielded coaxial cable 50 m reel.
    RF-400UF - LOW LOSS Ø 10.3 mm - Double shielded coaxial cable 50 m reel.

RF-400UF HRS LOW LOSS coaxial cable Ø 10.3 mm double shielded 50 m reel.

Ref: RF400UF/50

Immediately available
€161.50
Tax included
rating Read the review
Average rating: 5/5 Number of reviews: 1
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


  • Description
  • Product Details
  • Comments

  • Warning: file_exists(): open_basedir restriction in effect. File(/views/templates/hook/tab.tpl) is not within the allowed path(s): (/home/fhamradi/:/opt/cpanel/ea-php81/root/usr:/usr/local/lib/php:/tmp:/etc/pki/tls/certs/ca-bundle.crt:/var/cpanel/php/sessions:/usr/local/bin/wp) in /home/fhamradi/public_html/classes/module/Module.php on line 2292
    Reviews

RF-400UF HRS LOW LOSS


COAXIAL CABLE LOW LOSS DOUBLE SHIELDING 50M COIL.
 PRODUCT IN ITALY


  • Conductor interior: Red copper
  • Diameter conductor: 7 x 1 mm
  • Dielectric: expanded polyethylene - Ø 7.25 mm + 0.18 mm
  • Screen: copper foil / polyester - h 27 mm - Coverage: 100%
  • Trace: Red copper - 112 x 0.16 mm - Coverage : 73%
  • Sheath: PVC2 Ø 10.3 mm + 0.18 mm
  • Impedance: 50 Ohms + 3
  • Speed propagation: 84%
  • Capacity: 80 pF/m
  • Efficiency shielding:
    >80 dB (100-900 MHz)
    >70 dB (900-2000 MHz)
    >60 dB (2000-3000 MHz)
  • Weight of the cable:
    - Copper: 81.0 kg/km
    - Plastic: 63.8 kg/km
    - Total144.8 kg/km

TABLE ATTENUATIONS (dB x 100 meters)
5 MHz
10 MHz

50 MHz

200 MHz

500 MHz

800 MHz
1000 MHz

3000 MHz
1.1
1.5

2.9

6.0

10.3

13.2
15.0

28.1

RF400UF/50
31 Items

Data sheet

Guy
Cavi 50 OHM
Compatible brand
Generico
Sub-Categories
Cavi 50 OHM

Specific References

ean13
0644730932202
RF-400UF
rating 5
Cavo con ottimo rapporto qualità prezzo. Basse perdite anche in tratte lunghe. Hamradioshop veloce e preciso come sempre. Una garanzia
