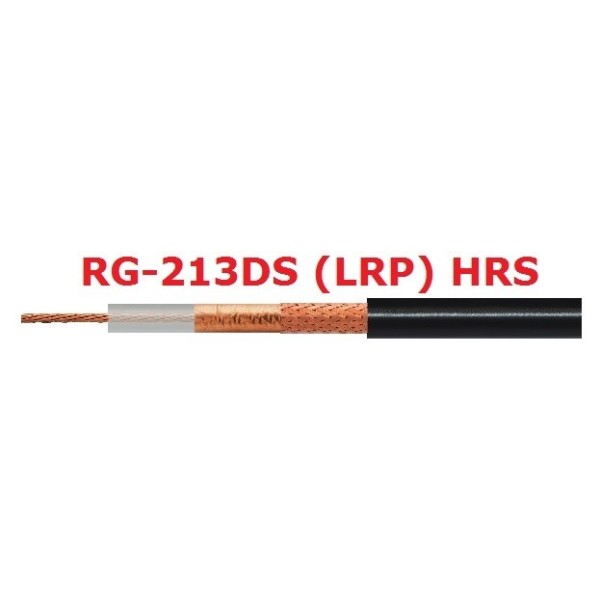

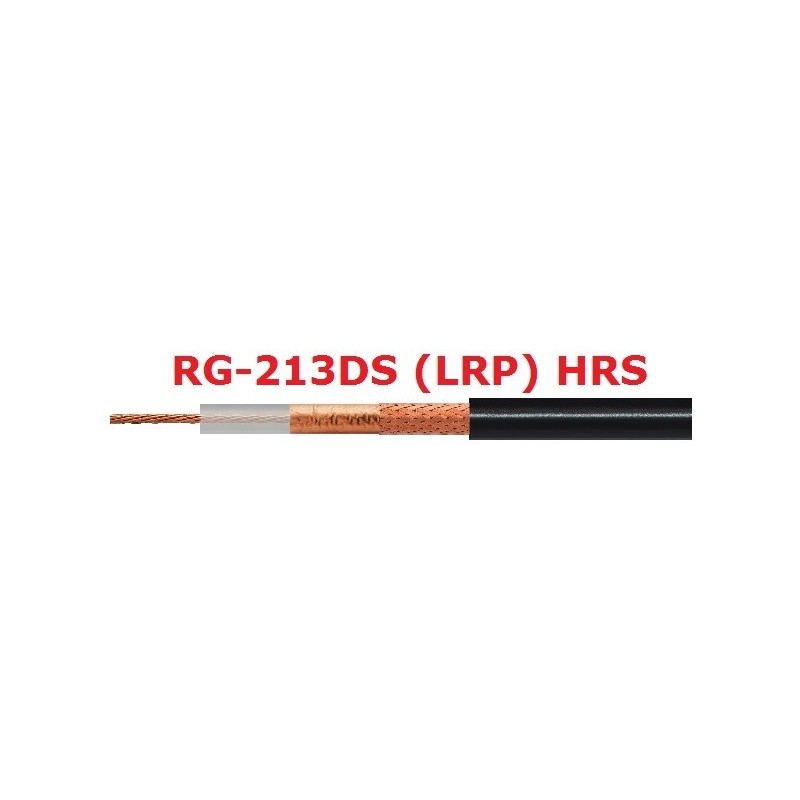

RG-213DS HRS - 10.3mm Double Shielded Coaxial Cable, 33 Meters
Ref: RG213DS/33
Immediately available
€84.00
Tax included
No review at the moment
Usually ships within 24 hours.
RF-400UF HRS LOW LOSS
CAVO COASSIALE BASSA PERDITA DOPPIA SCHERMATURA
PRODOTTO IN ITALIA
- Conduttore interno: Rame rosso
- Diametro conduttore: 7 x 1 mm
- Dielettrico: polietilene espanso - Ø 7.25 mm + 0.18 mm
- Schermo: lamina di rame / poliestere - h 27 mm - Copertura: 100%
- Traccia: Rame rosso - 112 x 0.16 mm - Copertura: 73%
- Guaina: PVC2 Ø 10.3 mm + 0.18 mm
- Impedenza: 50 Ohm + 3
- Velocità di propagazione: 84%
- Capacità: 80 pF/m
- Efficienza schermatura:
> 80 dB (100-900 MHz)
> 70 dB (900-2000 MHz)
> 60 dB (2000-3000 MHz) - Peso del cavo:
- Rame: 81.0 kg/km
- Plastica: 63.8 kg/km
- Totale144.8 kg/km
TABELLA ATTENUAZIONI (dB x 100 metri) |
|||||||
5 MHz
|
10 MHz
|
50 MHz |
200 MHz |
500 MHz |
800 MHz |
1000 MHz
|
3000 MHz |
1.1
|
1.5
|
2.9 |
6.0 |
10.3 |
13.2 |
15.0
|
28.1 |
RG213DS/33
11 Items

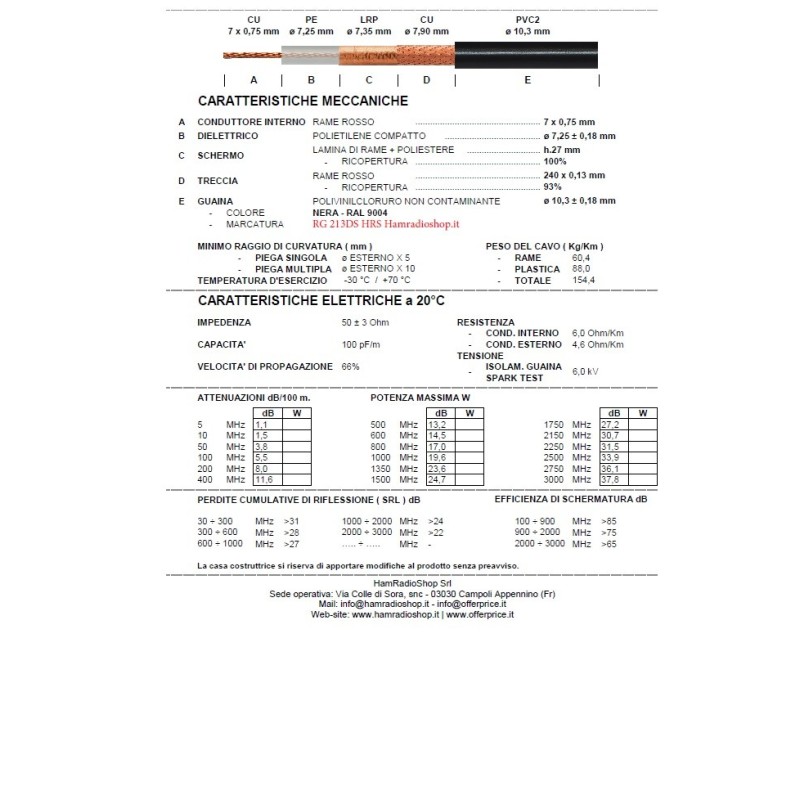

Data sheet
- Mpn
- RG-213 DS HRS
- Guy
- Cavi 50 OHM
- Specifications
- Doppio schermo in rame 100%
- Compatible brand
- Generico
- Sub-Categories
- Cavi 50 OHM
Specific References
- ean13
- 0644730931977
