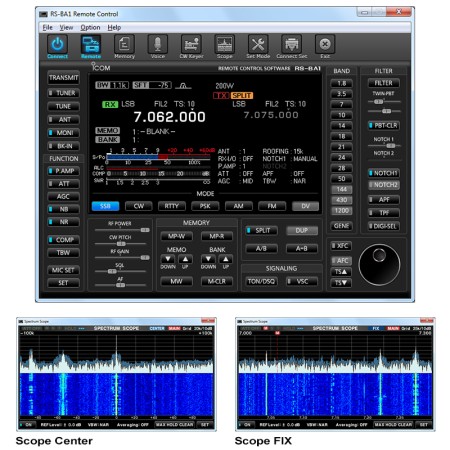

Icom RS-BA1 - IP remote control software New Version 2.0

RS-BA2.0
SOFTWARE FOR REMOTE CONTROL VIA IP

Update Software

The software allows you to operate and control radios connected to a PC with Windows® operating system from another PC via an IP connection using one virtual serial port/simulated audio ports.
Any radio provided CI-V/RS-232 or USB input port can be used with this software.

The RS-BA1 software package consists of the following parts:

• Communication components for the network:
  Remote basic utility (basic software for both stations, interconnection of the audio ports and COM port between PC on the radio side and remote PC via IP).
  Virtual COM Port Driver (for PC operator side, conversion of data retransmitted via IP to an emulated COM port).
  Virtual audio port driver (for operator-side PC, retransmitted data conversion to the emulated audio input/output ports).
• Remote control software (for operator side PC)
• USB Driver for IC-7200/7600 (for operator side PC)1

• Operation is guaranteed only for radios with a USB port:
  IC-7100/7200/7410/7600/9100.
• It also works with IC-7700/7800 via the RS-232 port as well
  as with other CT-172 equipped radios.
  Compatible with Windows® XP SP2 or higher, Vista and Windows® 7 (32bit / 64bit3).
• The IP connection must be made between two static IP addresses in both
  the stations4.
• Audio latency times: 150ms5 (Win® XP) / 250ms5 (Vista/7)
  Function of voice recording.

Supplied with: USB cable (to connect the PC on the radio side with a radio with USB port).

1- An updated firmware is expected to be released for radios with port USB for better use of new features. Details will be communicated in the future.
2- The latency values shown below do not include those due to the network.
3- Driver compatibility with the 64-bit version it is still being finalized
(Windows 7-64bit only accepts drivers verified with digital signature)
4- The details of the necessary IP characteristics are yet to be determined. - A basic understanding of IP networks/setting of router is essential for setting up the RS-BA1 and for use of a normal IP network.
5- These values do not include latency times of the network.
