Heil Sound PS6 ProSet 6 - Headset Microphone for RTX amateur radio HC6 capsule


Tax included
rating Read the review
Average rating: 5/5 Number of reviews: 1


Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.

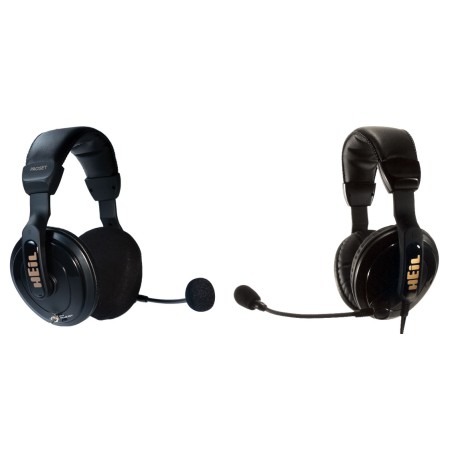

Heil Sound ProSet 6

Microphone headset for amateur radio RTX with HC6 capsule

Designed to meet the demanding standards of world-class contesters and DXers, the Heil Sound Pro Series of sets are the best-selling Boom Mic/Headset combo on the market! The Heil Sound Pro set is available in two models: Pro Set 6 and Pro Set iC. Both are smooth and versatile microphones/headphones designed for comfort, durability and, above all, performance.
The earpieces are full sized, with heavily padded cushions for operator comfort during long periods of work. The earcup covers are removable for washing and replacement capsules are also available. In addition to passively isolating noise, Pro Set now includes Heil Sound's exclusive phase inversion technology, which allows the user to "move" the incoming signal by engaging the phase inversion switch; this creates a unique spatial broadening sound that, in some situations, can greatly improve listening in pileups.
The Pro Set Series speakers are rated 200 Ohm devices, with the drop at -3 dB at 8000 Hz. This combination greatly reduces the hiss found in the receiver's audio stages. These speakers have average sensitivity, but are easily driven by most RTXs.

The Pro Set iC (PS iC) uses Heil Sound's "iC" capacitor element specially designed by Heil Sound for compatibility with the low gain found on many microphone amplification stages of Icom transceivers. The -3dB points are fixed at 80 Hz and 12.5 kHz. The iC element requires +5 volt DC phantom power, with all iCOM implants supplied. PS iC also comes with the AD-1 iC adapter cable.

The Pro Set 6 uses the HC-6 element instead. Designed for commercial broadcast applications, the -3dB points are fixed at 100 Hz and 12 kHz with a sensitivity of -57 dB at 600 ohms output impedance (centered at 1 kHz.) The Pro Set 6 requires an optional adapter cable so to adapt the ProSet to the microphone input jack of the transceiver.

Each Pro Set comes with a microphone wind cover. The windshield does not affect the frequency response of the microphone, and is very effective at minimizing air blowing while you speak. Take advantage of Heil Sound's years of engineering expertise and buy a Pro Set today!


Red for RTX Kenwood: AD-1-K

Blue for RTX Icom: AD-1-I

Yellow for RTX Yaesu: AD-1-Y

White for RTX Collins: AD-1-C

Black for RTX Ten-Tec: AD-1-T


Data sheet

Cuffie & Cuffie microfoniche
Compatible brand
Cuffie & Cuffie microfoniche

Specific References

Tutto ok
rating 5
Articolo corretto
