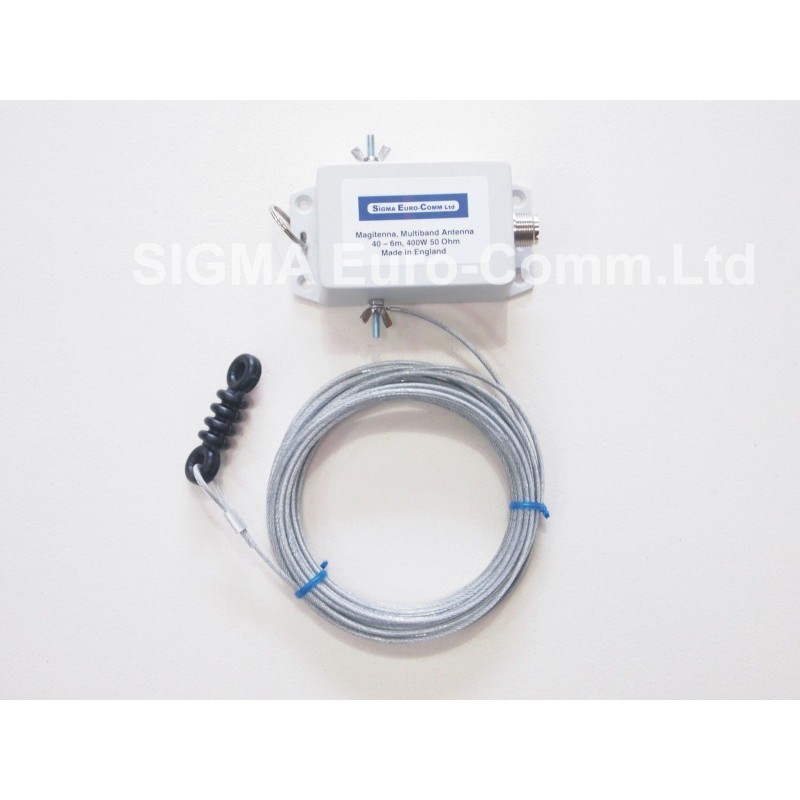

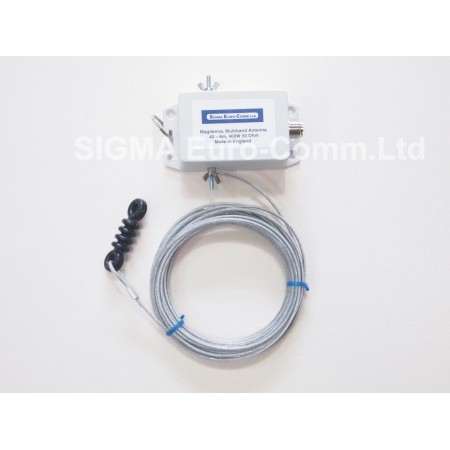

ECO ANTENNAS MAGITENNA - Wire antenna from 80 to 6 metres
Ref: MAGITENNA
Immediately availableECO ANTENNAS MAGITENNA - Wired antenna from 80 to 6 meters - wired end-fed 3.5-52 MHz to be combined with internal or external ATU
The easy solution for limited space. Only 7.6 m in length. This antenna row with its matcher (supplied) will work from 40m to 6m with the ATU internal of most modern radios and on 80m & 60m with an external ATU. This antenna supports 400W CW or 550W PEP.
If you want a hidden antenna you can fix it to the downpipe (plastic) of your gutter, or to a tree... yes you could even anchor it to the washing line! Of course it could be mounted horizontally as a short wire or fixed in the loft. Are you going portable? Tie it to a fiberglass fishing pole and place it next to your tent / table or throw one end up a tree. The possibilities they are infinite.
You will be "On Air" with no additional weight to carry - a true plug and play unit. An earth counterweight or rod of land helps the agreement, but is not always necessary. Also suitable for use on a marine HF setup - will work on HF and marine bands MF and with IP65 protection rating.
The Magituner comes fully assembled and ready for use. Even the thread poly weave does not tangle and is extremely durable.
Specifications:
END-FED wire antenna
Frequency: 3.5 - 52 MHz
Band: 80-6m
Power :400W RF
Impedance 50 Ohm
Connector SO-239
Length 7.6 meters
Cable in "non-Kink Poly" fabric
Data sheet
- Mpn
- MAGITENNA
- Guy
- Dipoli & Filari
- Compatible brand
- Generico
- Sub-Categories
- Dipoli & Filari
Gute endgespeiste Antenne für qrp mit dem FT817. Geringes Gewicht.
