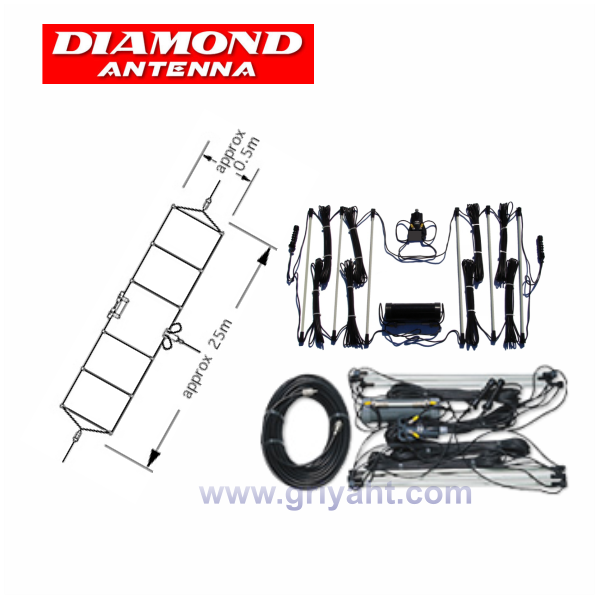

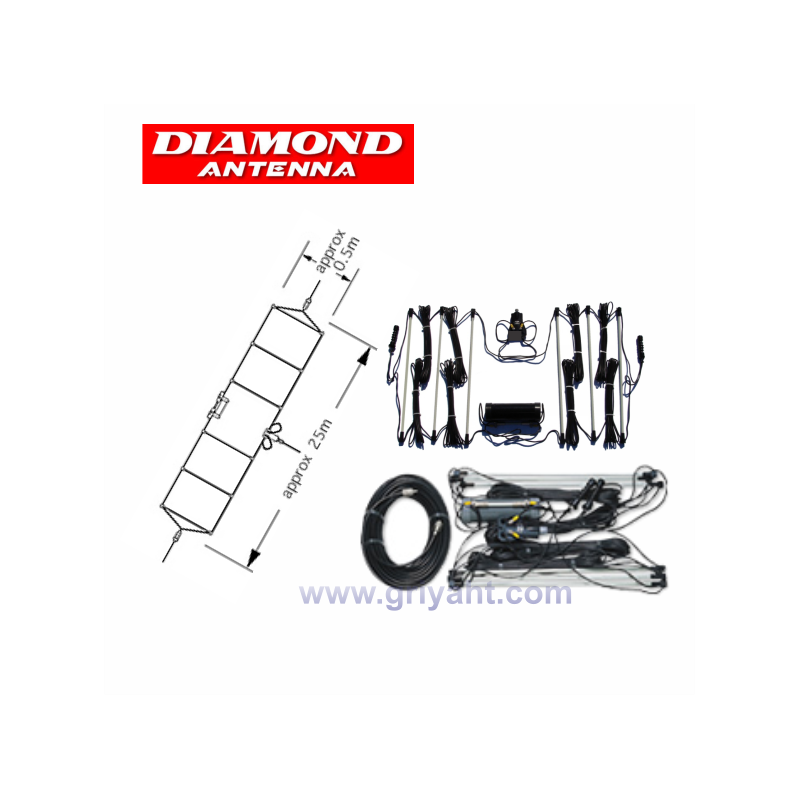

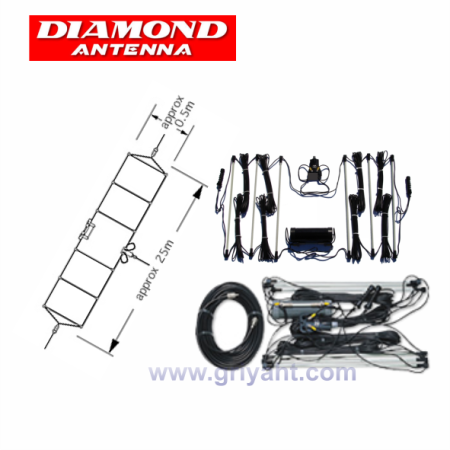

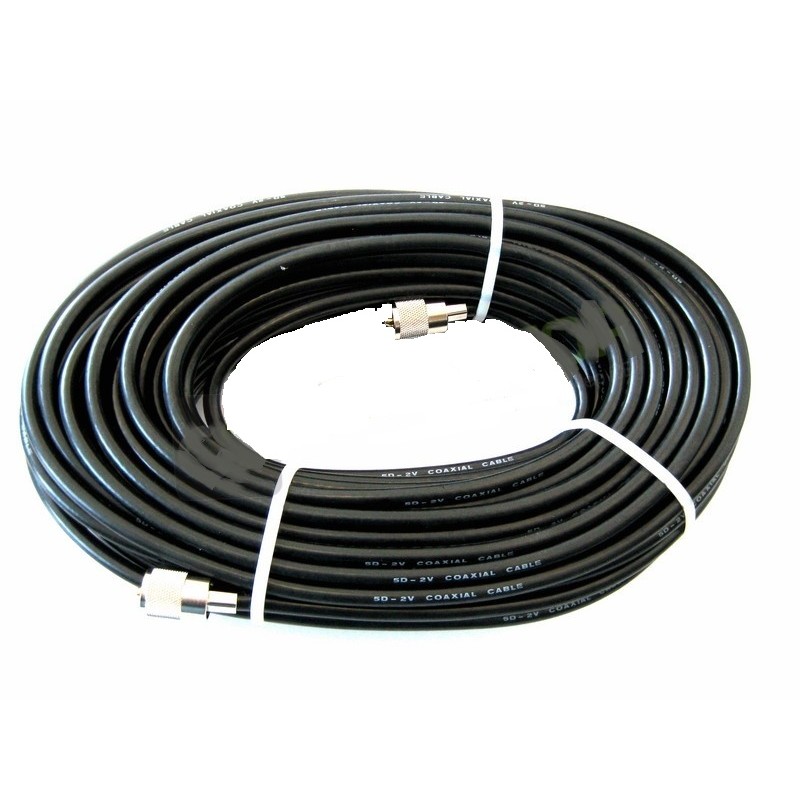

    Diamond WD-330 - dipole from 2 to 28.6 MHz with 30 m. cable
    Diamond WD-330 - dipole from 2 to 28.6 MHz with 30 m. cable
    Diamond WD-330 - dipole from 2 to 28.6 MHz with 30 m. cable

Diamond WD-330S Dipole from 2 to 28.6 MHz 10 m long.

Ref: WD330S

Out-of-Stock
€187.20
Tax included
rating No review at the moment

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


150 WATT PEP FOLDED DIPOLE ANTENNA

- Band coverage: 2 to 28.6 MHz
- Radiator length: 10 meters
- Configuration type: Terminated Folded Dipole
- Radiation: directional
- Connector: SO-239 (for PL-259)

- Power cord: not supplied

- ROS: On average from less than 2.0:1 to less than 3.0:1 depending on the installations
- Does not require a tuner within the VSWR and aforementioned ranges, which can be further improved with the automatic tuners from LDG Electronics marketed by us
- Applicable power: 150 Watts (PEP)

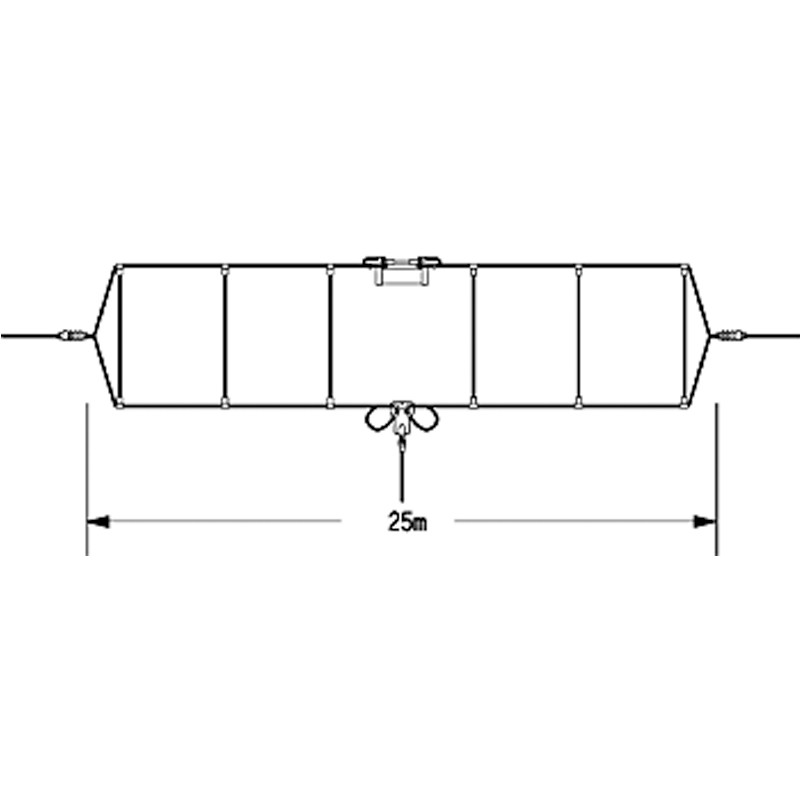

- Distance between the two horizontal wires: 46 cm
- Weight: about 3.1kg

The WD-330 was born from a project for severe applications in the commercial broadcast field from 2 to 30 MHz, adapted to the space requirements typical of European radio amateurs: a very valid choice from a qualitative point of view. It is made of copper braid specific for use, covered with excellent quality protective PVC. Supplied complete with exceptionally robust fiberglass spacers, broadband tuner and balun, allowing adaptation to the 50 ohm power line. It arrives already pre-calibrated and assembled. You will therefore not have to measure, cut, stretch or calibrate anything. The WD-330S can be installed horizontally for maximum efficiency, but can very well be installed as an inverted "V" and as a sloper. Some appear to have already installed them in "sloper" systems composed of multiple, single or coupled WD-330 antennas to obtain greater gain, directivity and signal discrimination. If mounted sufficiently far from obstacles and metal structures, the performance is very good and the ROS is within specifications.

WD330S

Data sheet

Mpn
WD-330S
Guy
Dipoli & Filari
Compatible brand
Generico
Sub-Categories
Dipoli & Filari

Specific References

ean13
4936312008907
