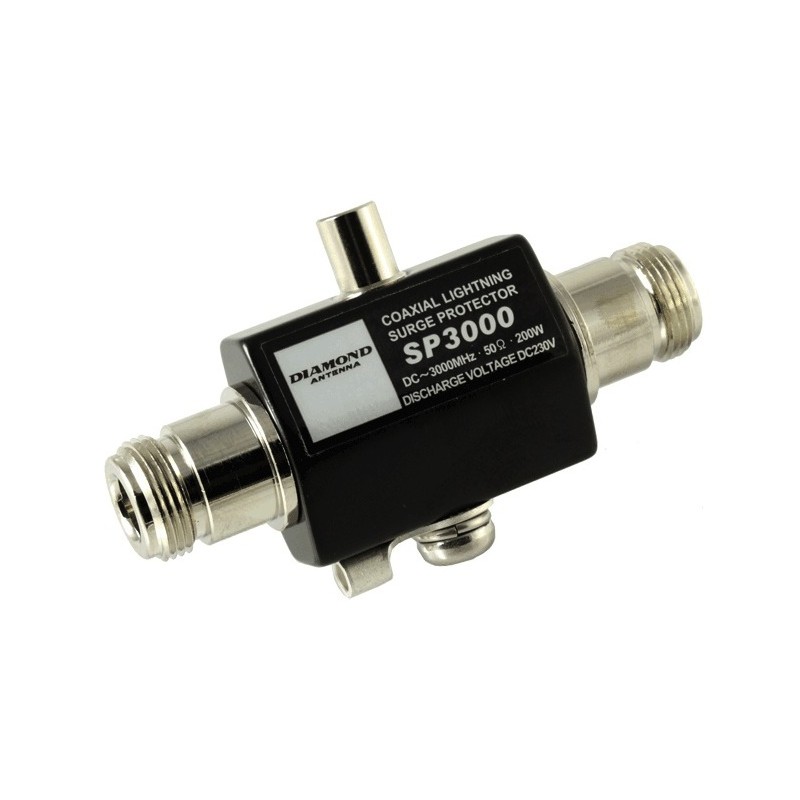

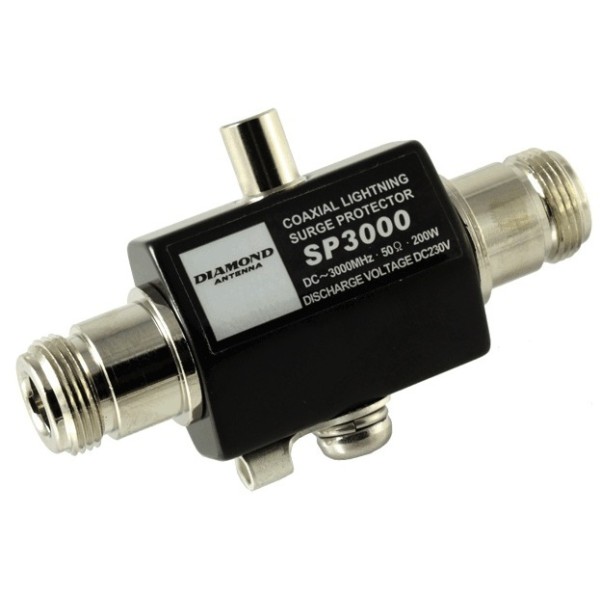

Diamond SP-3000 for lightning protection

SP-3000

Diamond lightning protection for in-line use; The protection can be used directly on the coaxial line at the base of the antenna or radio

CHARACTERISTICS :

- Frequency Range: DC-3000 MHz;

- Impedance: 50 Ω;

- VSWR: Less: less than 1.2;

- Insertion Rating: 200 WPEP;

- DC Breakdown Voltage (100V/S): 230 V ± 20%;

- Max. Impulse Breakdown Voltage (1000/ μ S): 650 V;

- Nominal Impulse Discharge Current (8/20 11S 10T/Mes): 10kA;

- Impulse Life (10/1000 μS) 100 A (TIMES): 300 times;

- DC Holdover Voltage: 150

- Insultation Resistance: Over 10,000 M Ω

- Connector: NJ

- Outer dimensions (mm): 78Wx41Hx20D:

Weight(approx.):110g
