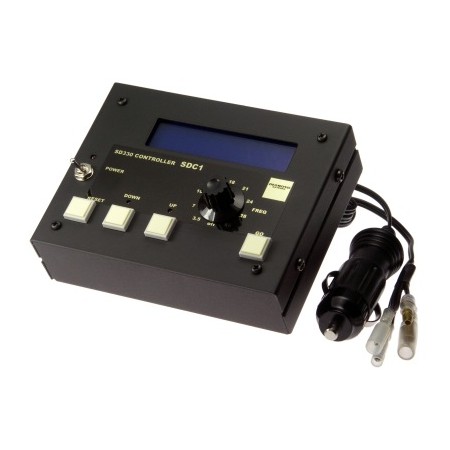

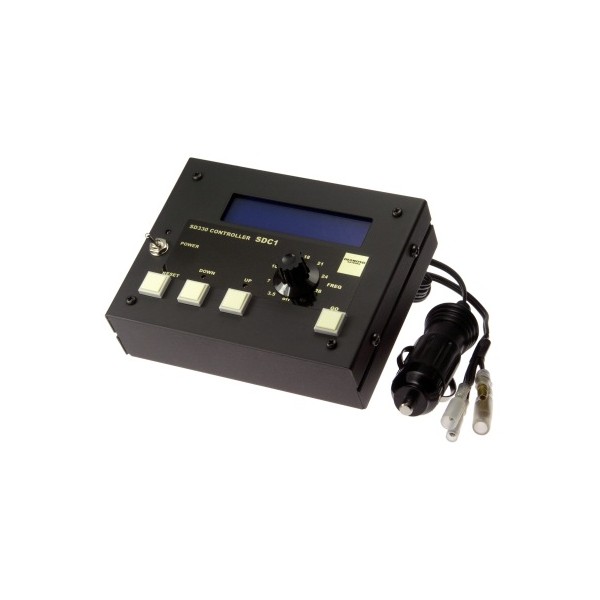

Diamond SDC1 semi-automatic control unit for SD330

Diamond SDC1

semi-automatic control unit for SD330

The Diamond SDC-1 controller is the ideal complement to the SD-330 mobile antenna. Unlike the original controller, you can choose to use automatic fixed positions for each band. Basically, it emulates the manual operation of setting the desired band/frequency and pressing the "GO" button. The frequency and position count number will be shown at that time. Fine adjustment is set with the "UP" and "DOWN" buttons with a maximum output power of 10W. The supply voltage of the SDC-1 is usable from 9-14.5V and comes with a socket for Lighter. A simple reverse voltage protection is built into the device. During operation, the SDC-1 requires a maximum of 200 mA
