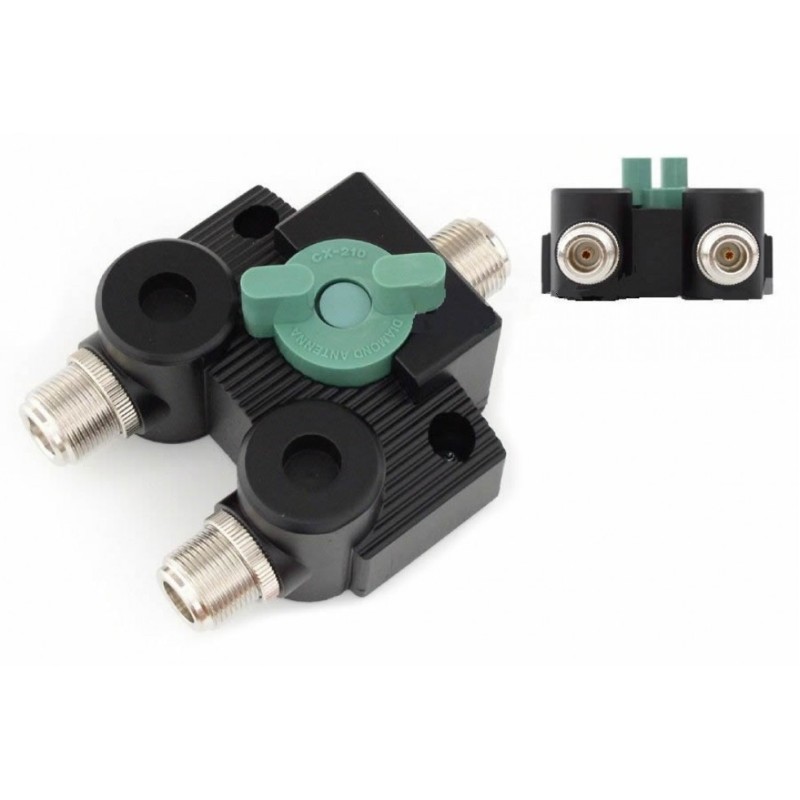

Diamond CX-210N 2-way switch connectors N
Ref: CX210N
Immediately available
€76.00
Tax included
No review at the moment
Usually ships within 24 hours.
Specifications
CX-210N
Frequency:
0-3000MHz
Power
0-30MHz:
1500 watts
Power
CW 30-150 MHz:
1000 watts
Power
CW 150-500 MHz:
500 watts
Power
CW 500-1000 MHz:
250 watts
Power
CW 1000-3000 MHz:
150 watts CW
Loss
insertion range 0-500 MHz:
0.05dB
Loss
insertion range 500-1000 MHz:
0.1dB
Loss
insertion range 1000-2000 MHz:
0.15dB
Loss
insertion range 2000-3000 MHz:
0.2dB
Isolation
0-200MHz:
70dB
Isolation
200-1000MHz:
60dB
Isolation
1000-2000MHz:
55 dB
Isolation
2000-3000MHz:
50dB
Impedance:
50 ohms
Connector:
N (input and output)
Dimensions:
71 x 57 x 42 mm (2.8 x 1.8 x 3.7 inches)
Weight:
440g (15.2oz)
CX210N
8 Items
Data sheet
- Mpn
- CX-210N
- Guy
- MANUALE
- Specifications
- Connettori N
- Compatible brand
- Generico
- Sub-Categories
- Commutatori d'antenna
