Order by 3pm and receive your order the next day

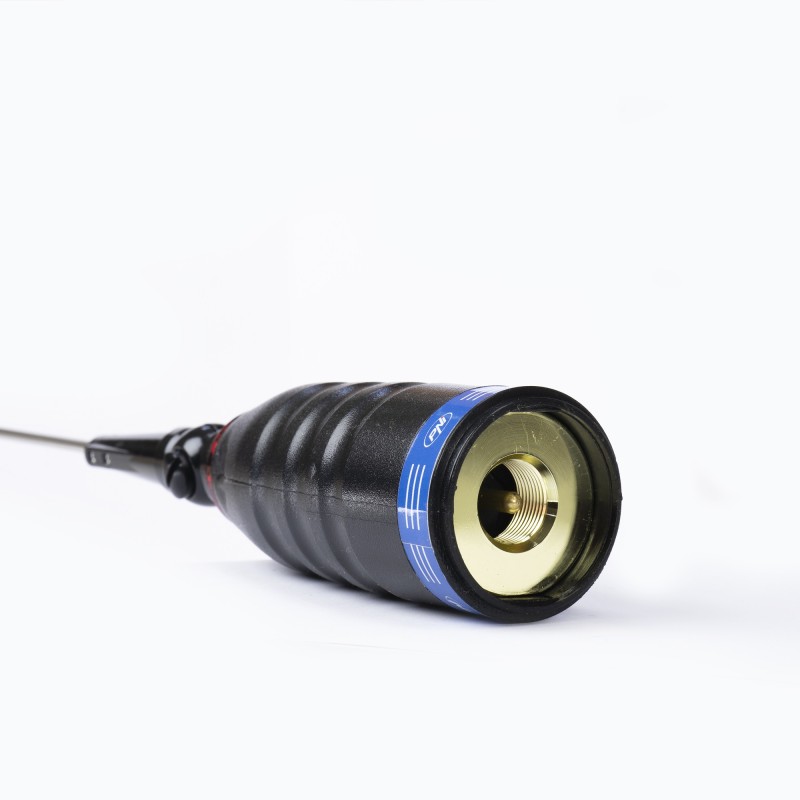

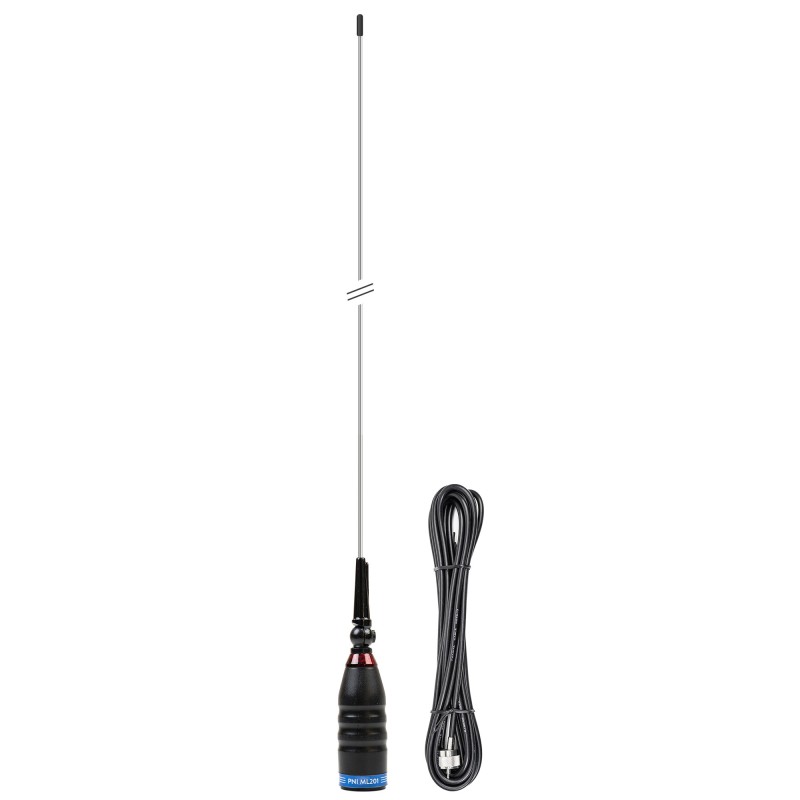

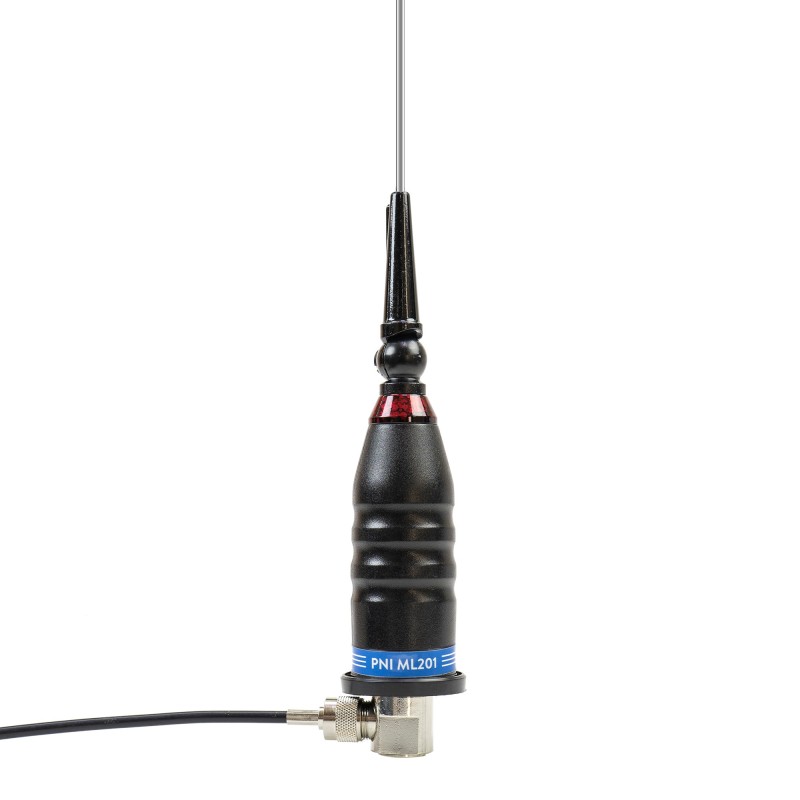

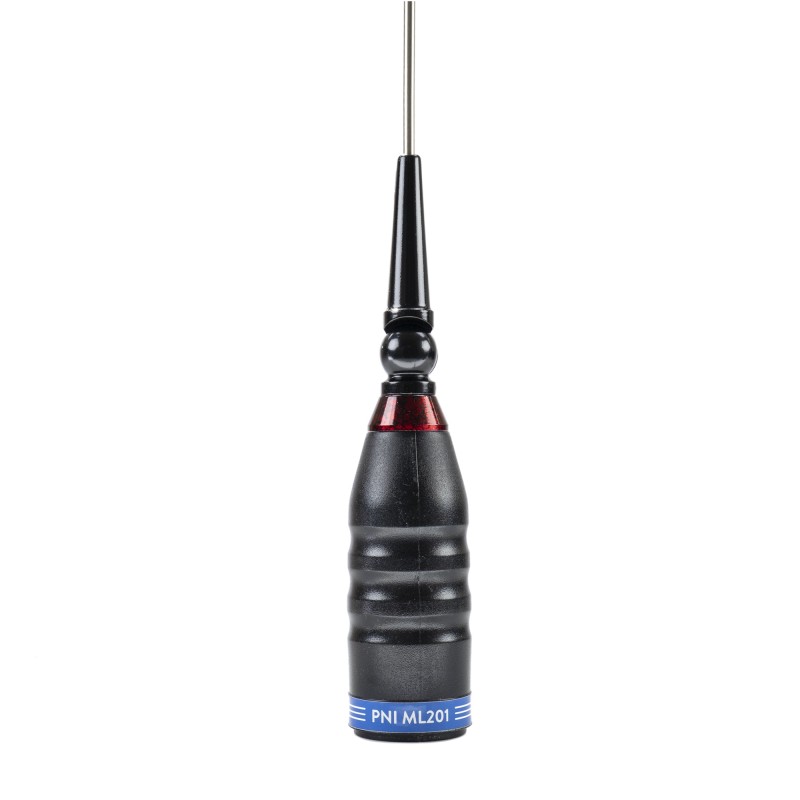

CB PNI ML201 Black antenna, length 201 cm, 26-28 MHz, 1200 W with 90 degree inclination
Ref: PNI-ML201BK
€42.00
Tax included
No review at the moment
Usually ships within 24 hours.
No review at the moment
| Product identification | |
| Product code | PNI-ML201BK |
| Working tape | ? |
| Product color (peak) | Silver |
| Coil Color Co | Black |
| General characteristics | |
| Working frequency | 26 - 28 MHz |
| Maximum applied power | 1200W |
| Minimum SWR in the center of the band | less than 1.2:1 |
| Length | 201cm |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector Tip Connector | PI |
| Hole diameter (mm) | 16mm |
| Cable length | 4m |
| Weight | 717 gr |
| dimension | 45 x 45 x 2010 mm |
| Polarization | vertically |
| Working distance | 20km |
| Operating temperature | -26°C ~ +60°C |
| tiltable | Yes, up to 90 degrees |

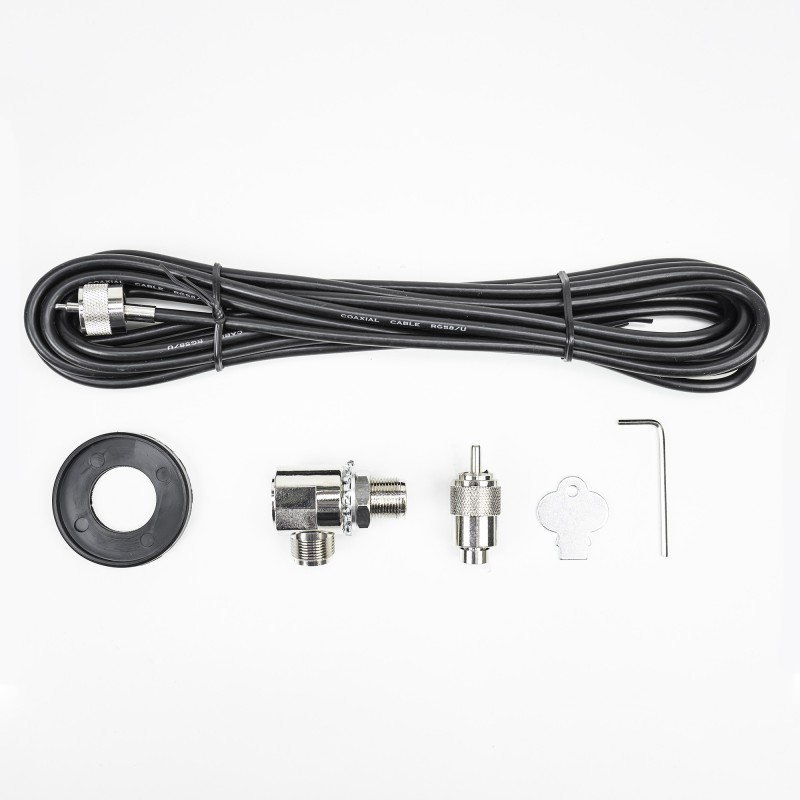

| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | Yes |
| Plug PL259 | Yes |
| Antenna mating plug | |

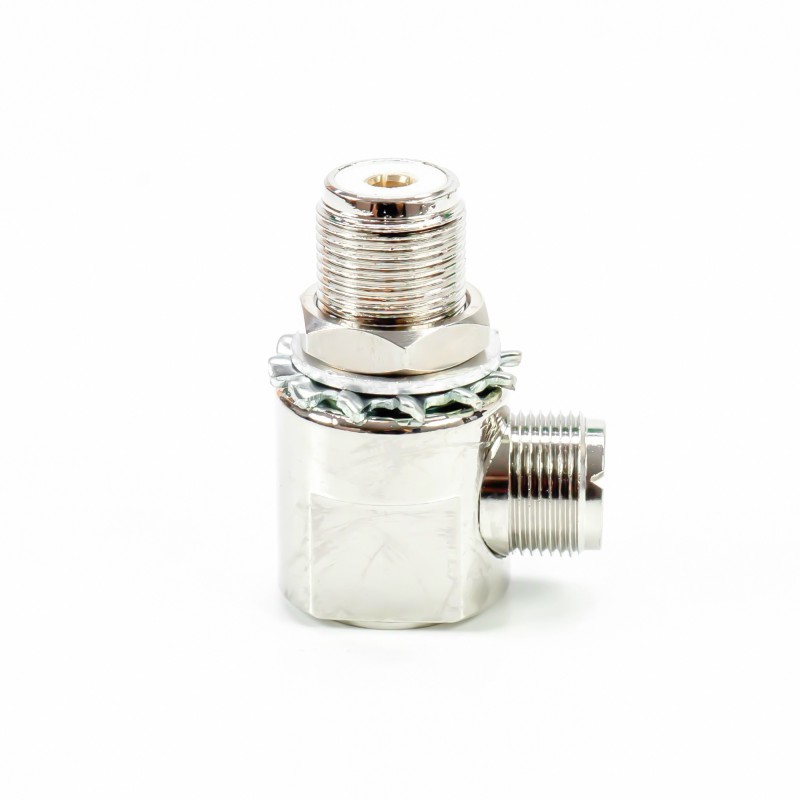

| SO239 connector | Yes |
PNI-ML201BK
1 Item
Data sheet
- Mpn
- PNI-ML201BK
- Guy
- C.B. Veicolari
- Specifications
- 26/30 MHz
- Compatible brand
- Generico
- Sub-Categories
- C.B. Veicolari
Specific References
- ean13
- 5949066514760
- MPN
- PNI-ML201BK
