Ref: 02023483

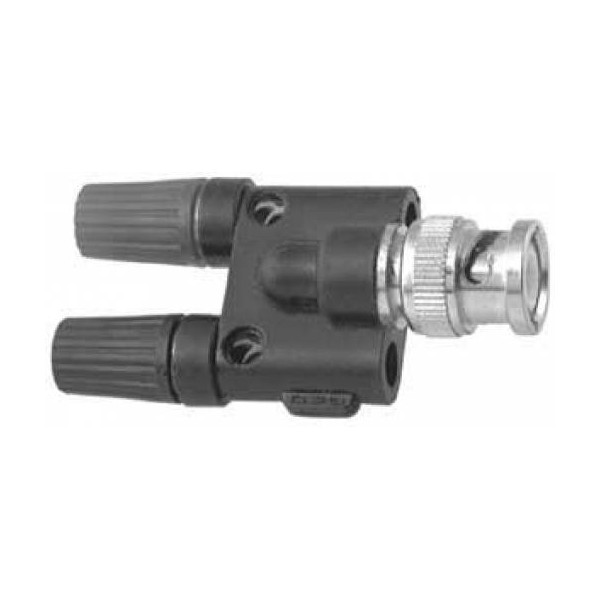

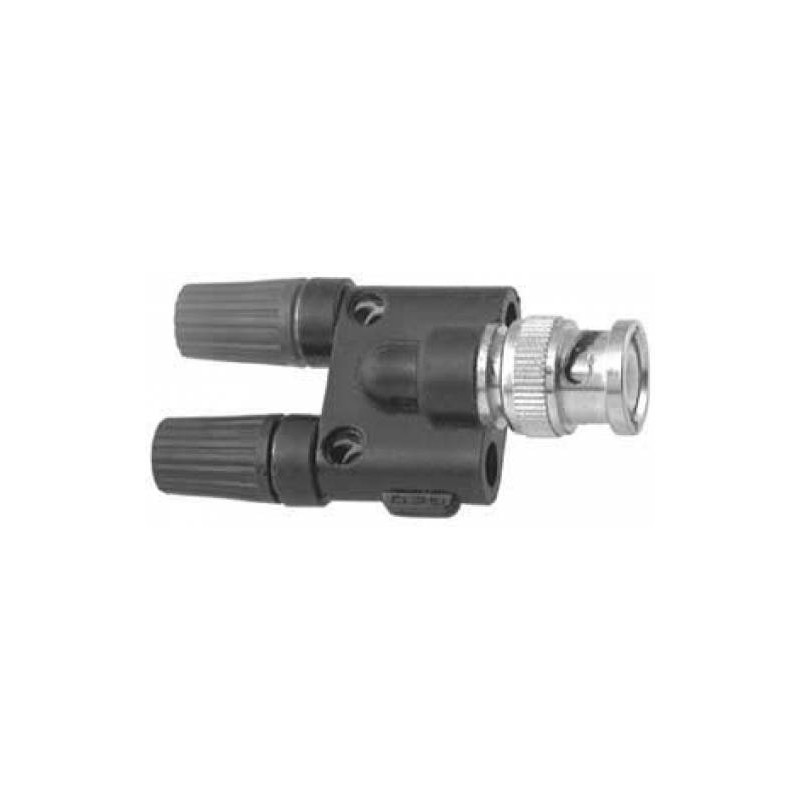

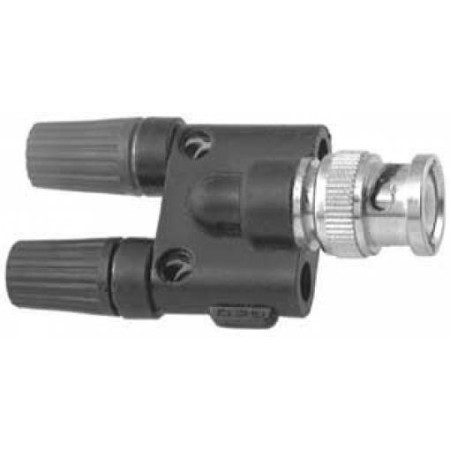

Immediately availableBNC plug to 2 terminal adapter
TECHNICAL SPECIFICATIONS
|
|
Body: | nickel-plated brass/thermoplastic |
Isolation: | derlin |
Step: | 19.05mm |
Hole: | Ø 4 mm |
Impedance: | 50W / 75W |
Frequency range: | 0 - 4 / 0 - 1 GHz |
Maximum applicable voltage: | AC 500V |
Maximum applicable voltage for 1 minute: | AC 1500V |
Contact resistance: | 3mW max. |
Insulation resistance: | 5000MW min. @DC 500V |
