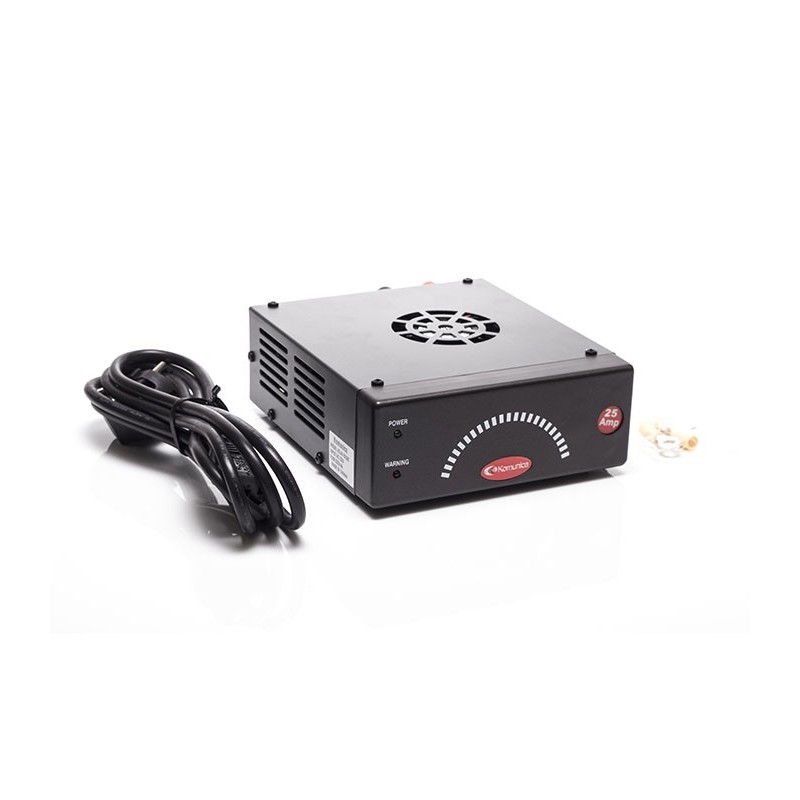

AV-825BC

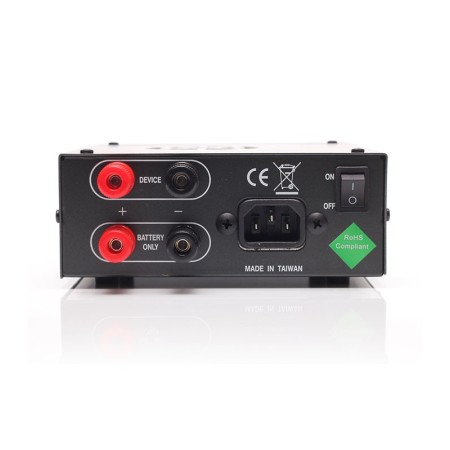

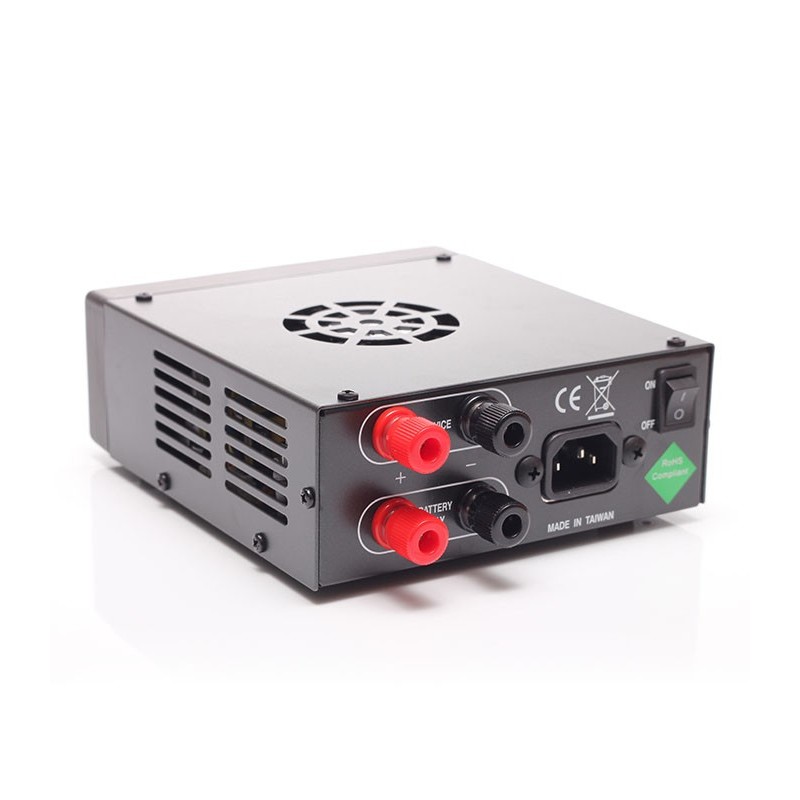

25 Amp switching power supply with battery charger for buffer battery. 22A continuous, 25A peak on the main socket, 15A peak and 4A continuous on the backup battery output.
Specifications
Input Voltage: AC 90~125 or AC 200~240 inside selectable
Output Voltage: AV-825-BC Fixed 13.8V
Output Voltage Regulation: Less than 1%
Ripple: Less than 9 mVp-p at rated load
Dimentions (L·W·H): 165 X 147 X 55 mm
Weight: 1.4 Kg
Protection
Short Protection, Short Protection & Over Voltage Protection >16V:
It will reduce the output voltage down to 0.1v Amps down to 0.4Amps and

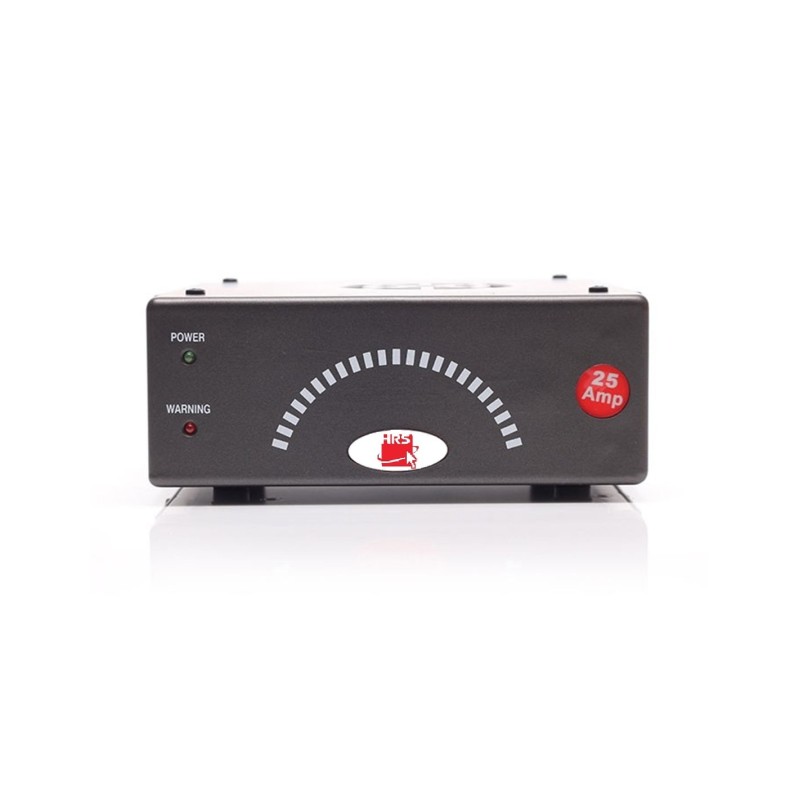

the warning LED will light up. When short condition, removing it will automatic restart
the power supply to normal condition.
Over Temperature Protection
AV-825-BC Series has double stage over temperature protection
Output Current
AV-825-BC Max 25 Amps continuous 22 Amps
Battery Back current 15 Amps intermittent OR 4 Amps continuous
Power Supply 25Amps, with charger
Switching power supply 25AMPS with battery-charger connection. Output voltage fixed 13.8V.
