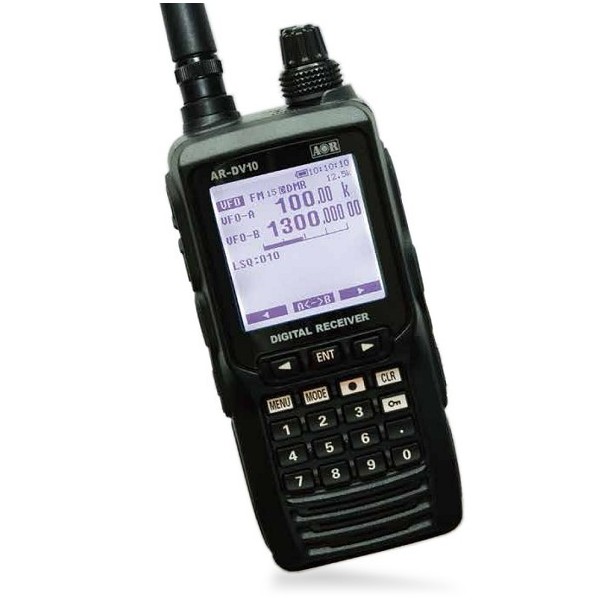

Ref: ARDV10
Immediately availableMonitoring and Listening to Analogue and Digital Signals!!!
100KHz – 1300MHz wide band
Decoding digital voice signals*: TETRA (mobile-to-mobile and T-TC trunking), DMR (Tier1/Tier2/Mototrbo), dPMR (446 Tier1), ICOM D-STAR, APCO25 (phase 1), NXDN (6.25KHz), YAESU C4FM, ALINCO EJ-47U, Digital CR
select in the mode: DMR the slot and color, the P-25 network access code (NAC) and NXDN radio access number (RAN)
“All-mode” reception of analogue signals: WFM/NFM/SFM, WAM/AM/NAM, SAH/SAL, USB/LSB, CW,
IF filters: 100/30/15/8/6/5.5/3.8/2.6/1.8/0.5/0.2KHz in analogue modes (the choice is linked to the mode), 6/ 15/30KHz in digital modes (automatic selection)
sensitivity: SSB (10dB S/N) 0.3uV, AM (10dB S/N) 1.6uV, FM (12dB SINAD) 0.3uV, WFM (12dB SINAD) 2.6uV
large 2.4" alphanumeric LCD display
2000 memories in 40 banks of 50 channels, memory scanning, with alphanumeric labels and 1 priority channel
interface with micro-USB socket for connection to the PC
NR noise reduction, auto-notch filter, digi-data display
CTCSS and DCS tone decoder
squelch: noise squelch, level squelch, reverse tone, digital voice detection
off-set reception and priority channel
AGC
modulation inversion scrambler decoding
stability +/- 5ppm (-10°C +50°C)
10dB attenuator (on/off)
700mW high power internal speaker (@ 16Ohm 10.5V 10% THD), external earphone min. 200mW (@8Ohm, 10.5V 10%THD)
antenna: BNC connector, with max input 0dBm
7.4Vdc power supply with 2000mAh BP-10 lithium battery, external 6.5 to 10.5Vdc
consumption: 240mA (typical), 500mA (max)
3 VFOs (A, B and Z)
SD/SDHC card reader (audio recording, timer recording, CSV loading and unloading of memory data, firmware upgrade)
Clock with calendar
compact dimensions 137 x 65 x 41mm (hxwxd) and weight of approx. 420gr (with battery and antenna)
supplied complete with: desktop charging stand with 220Vac adapter, rubber antenna and telescopic antenna both with BNC connector, clip, DC power cable with cigarette lighter plug, dry battery holder (6 x AA), micro SD-card, manual in Italian and 3 year RADIO-line warranty.
encrypted digital signals are not decoded
