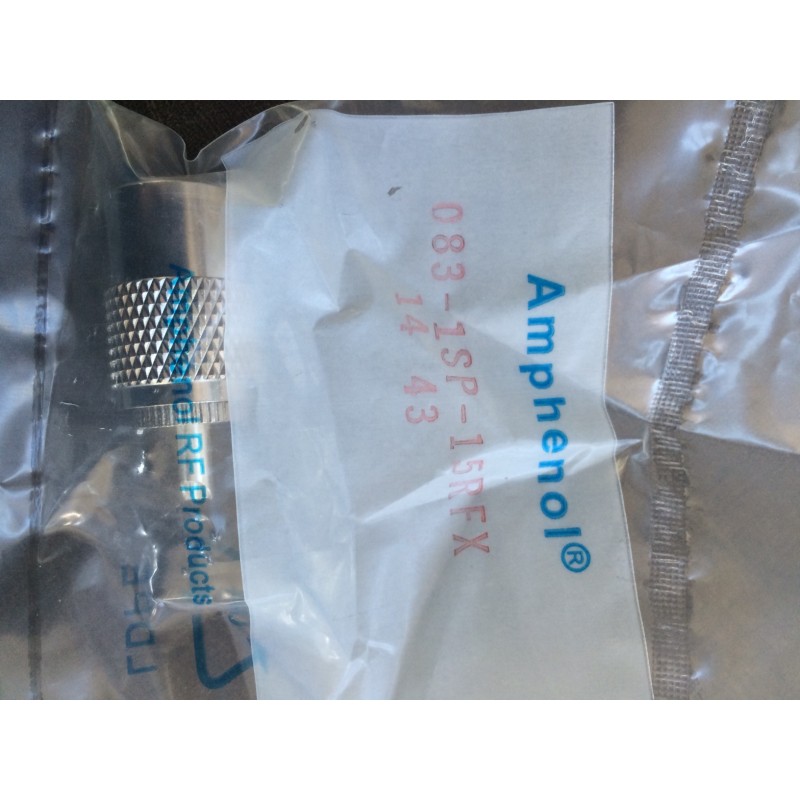

AMPHENOL PL UHF CONNECTOR FOR RG-58 AND H-155 CABLE
    AMPHENOL PL UHF CONNECTOR FOR RG-58 AND H-155 CABLE

AMPHENOL PL UHF CONNECTOR FOR RG-58 AND H-155 CABLE

Ref: UHF+RID58AMPHENOL/083-1SP-15RFX

Immediately available
€7.80
Tax included
rating Read the 6 reviews
Average rating: 5/5 Number of reviews: 6
Usually ships within 24 hours.
Quantity

Guarantee safe & secure checkout

AMPHENOL PL CONNECTOR (UHF) + REDUCER FOR RG-58 AND H-155 CABLE

  • The Amphenol PL-259 connectors distributed by us are individually packaged in AMPHENOL marked bags
  • Each connector has the name AMPHENOL engraved on the connector shell
  • The connector has a silver central pin for better soldering. The lateral holes of the central body are, in the new series, drawn in the factory in such a way as to facilitate soldering with a better deposition of the tin on the surface of the edges thanks to an appropriate countersinking.

Producer : Amphenol
Product Category : RF Connectors/Coaxial Connectors
RoHS: : RoHS compliant for exemption Details
Body finish : Nickel
Product : Connectors
RF Series : UHF
Type : Plug
Impedance : Non-Constant
Maximum frequency : 0.3 GHz
Termination Style : Cable - Solder
Mounting type : -
Polarity : Standard
Orientation : Straight
Cable type : RG-8, RG-10, RG-213, RG-225
Body Material : Brass
Body Style : Straight
Brand name : Amphenol RF
Contact Material : Brass
Contact Plating : Silver
Termination of contact : Solder
Coupling mechanisms : Threaded
Mating cycles : 500
Working temperature range : - 65 C to + 165 C
Series : UHF
Alias no. part : 083-1SP-15RFX
UHF+RID58AMPHENOL/083-1SP-15RFX

Data sheet

Mpn
AMPHENOL
Guy
UHF (PL)
Compatible brand
Generico
Sub-Categories
UHF (PL)

Specific References

ean13
0644730929400
Filter reviews
(6)
(0)
(0)
(0)
(0)
(0)
Reset

Top
rating 5
Ottimo prodotto
Ottimo
rating 5
Nulla da dire penso il top
Perfetto
rating 5
Materiale di ottima qualità
Ok
rating 5
Ok come previsto
Conettore Amphenol
rating 5
Conettori sempre al Top
Idem
rating 5
Idem
