16JXX70 430MHz directive antenna

16JXX70 430MHz directive antenna

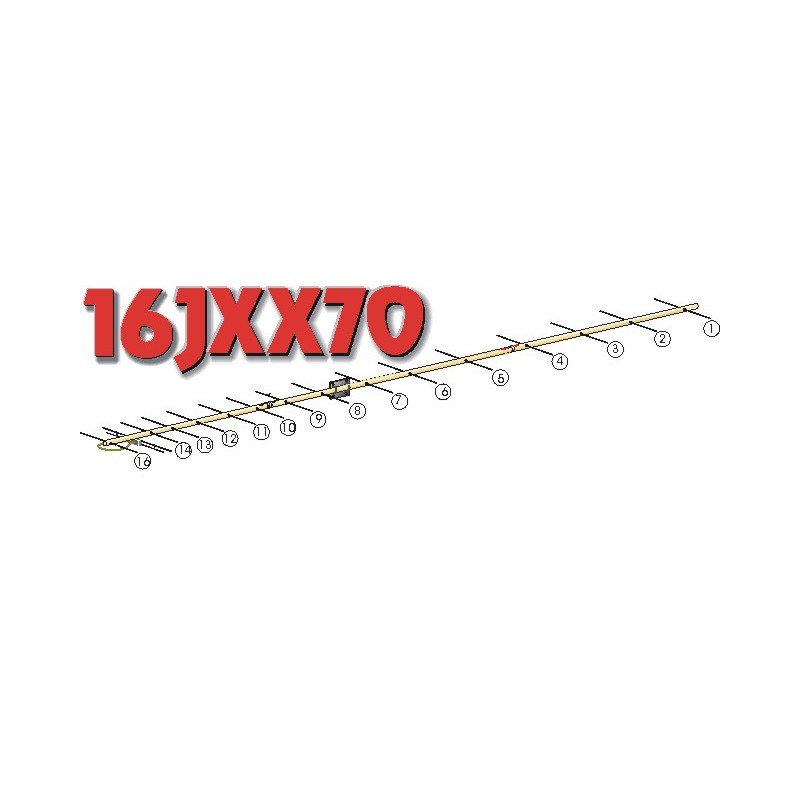

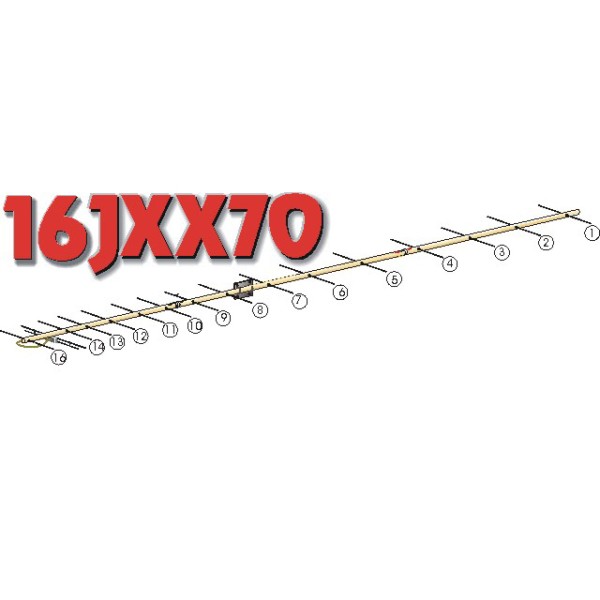

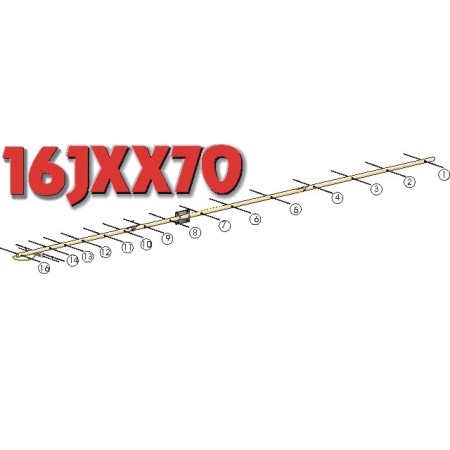

Yagi 16 elements for 70 cm

SPECIFICATIONS:

- Frequency: 432 MHz;

- Elements: 16;

- Earnings: 14.39 dBd / 16.53 dBi;

- F/R ratio: 30 dB;

- Angle at -3 dB floor E - H: 28.3° - 29.9°;

- Spacing floor E - H: 1.42 - 1.34 m;

- ROS: 1:1.2;

- Boom length: 3.1 m - 4.46 lambda;

- Boom diameter: 25 - 30 - 25;

- Element diameter: 5;

- Dipole: T-match;

- Connector: "N" precision;

- Balun: RG 142;

- Power Applicable: 1000W;

- Mast connection: max 75mm;

- Weight: 2.7 kg;

MEASUREMENTS (file for Yagi Optimizer):

16JXX70
432,000
432,300
432.600 MHz 16 elements, millimeters 5.0000
0.0000 169.0000
115.0000 163.5000
176.0000 157.0000
299.0000 153.0000
459.0000 149.0000
616.0000 146.5000
811.0000 146.5000
1028.0000 144.5000
1245.0000 140.5000
1456.0000 141.0000
1685.0000 141.5000
1956.0000 139.0000
2241.0000 138.5000
2541.0000 137.0000
2815.0000 134.5000
3096.0000 133.0000
