MONODIP-60 1/2 wave wire dipole, 60 meter band

Ref: MONODIP60

Immediately available
€69.50
Tax included
rating No review at the moment
Usually ships within 24 hours.

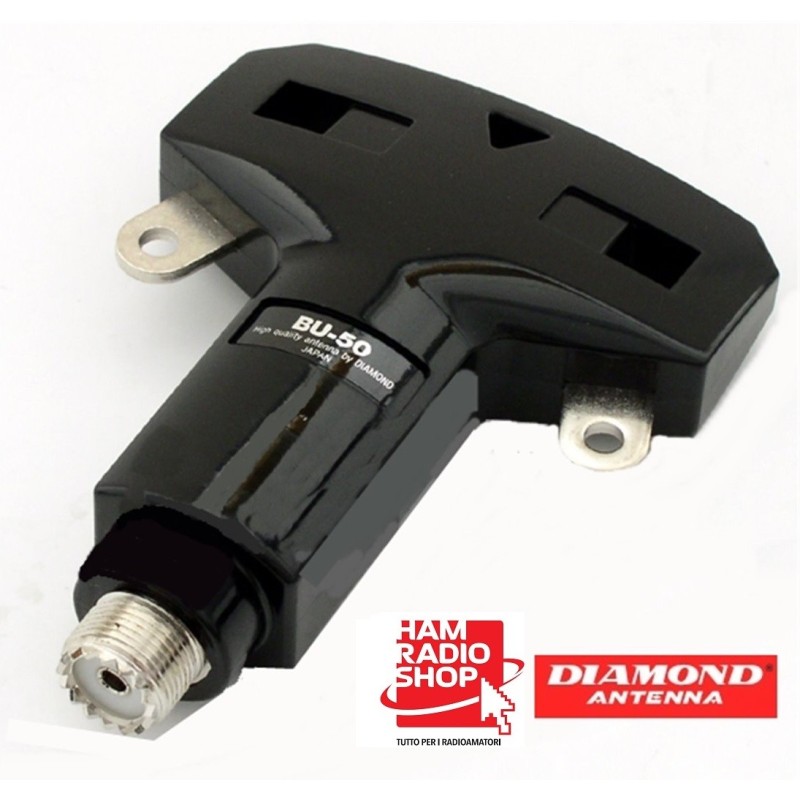

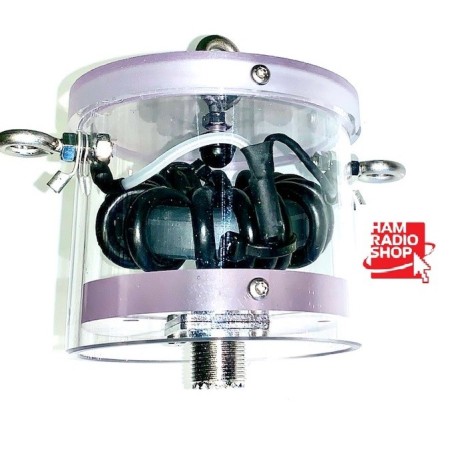

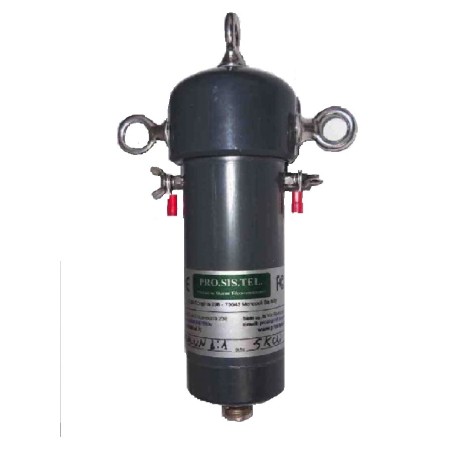

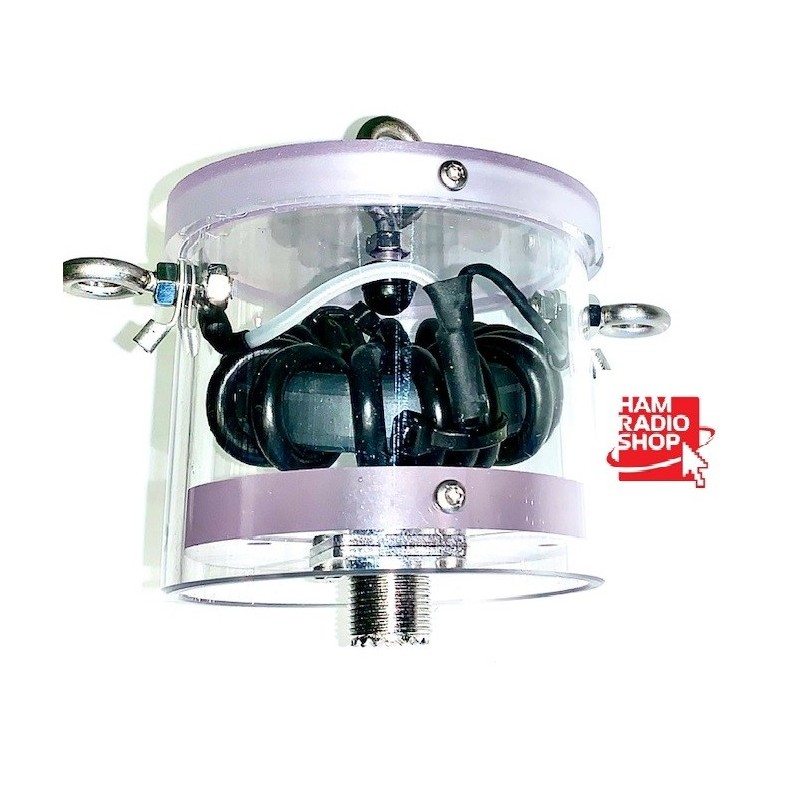

Central or balun : Centrale isolato
Quantity

Guarantee safe & secure checkout

MONODIP

1/2 wave monoband wire dipole antenna with isolated central unit or balun

Control panel with SO-239 connector.

UV resistant coated copper braid

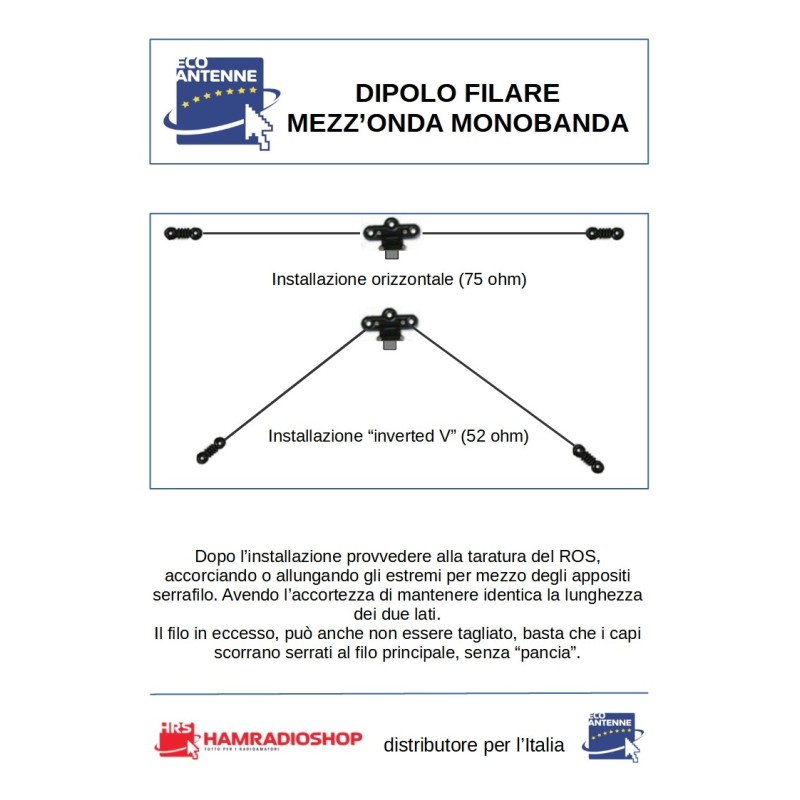

Impedance 75 Ohm if mounted in horizontal configuration, 50 Ohm if mounted in inverted V configuration

Directivity: front/back if mounted horizontally, omnidirectional if mounted in an inverted V shape

Gain: 2.1 dBi

Max power: depending on the control panel or balun chosen

SWR 1.7:1 (on 50 Ohm line) on the resonant frequency in horizontal configuration, 1.2:1 (on 50 Ohm line) in inverted V configuration.

Supplied with a longer terminal braid at each end to be calibrated depending on the configuration or the height at which it is installed

The diameter of the cable varies depending on the band (physical length) and the power required (depending on the balun required)

MONODIP60
10 Items

Data sheet

Mpn
MONODIP60
Guy
Dipoli & Filari
Specifications
1/2 onda
Compatible brand
Generico
Sub-Categories
Dipoli & Filari

Specific References

MPN
MONODIP60
