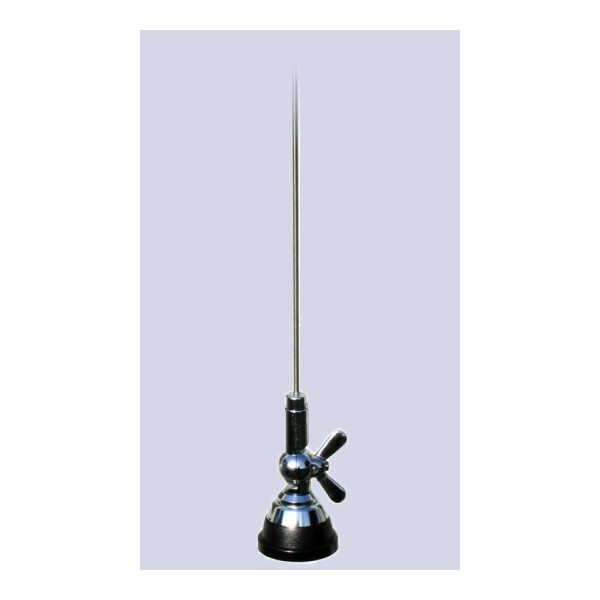

    SIRIO SMA 108-550/NE - Stilo Tarabile da 108 a 550 MHz attacco NE

Sirio SMA 108-550/NE - Stilo Tarabile da 108 a 550 MHz attacco NE

Ref: SMA-108550NE

Non disponibile
24,00 €
Tasse incluse
rating Nessun opinione al momento

Quantità

Guarantee safe & secure checkout

Sirio

Sirio SMA 108-550/NE stilo tarabile da 108 a 550 MHz attacco NE







Descrizione:
Antenna veicolare 1/4 lambda, stilo in acciaio, attacco NE

-     Up-grade: new model for 108-550 MHz
-     Mobile antenna, Mono-band
-     Unity-gain, Omnidirectional
-     Tunable by whip cutting
-     Stainless steel cylindrical whip
-     180° inclination and adjustable whip, detachable for car-washes access
-     Black chrome version available
-     Magnetic mount version available

Part Numbers:
P/N 2205305.07 SMA 108-550 "NE"mount

Electrical Data
-     Type: 1/4 λ Mobile Antenna
-     Frequency range:
SMA 108-550: tunable 108...550 MHz
-     Impedance: 50Ω
-     Radiation (H-plane): 360° omnidirectional
-     Polarization: linear vertical
-     Gain: 0 dB ref. to a λ /4 whip
-     Bandwidth @ SWR ≤ 2: see diagram
-     SWR @ res. freq.: see diagram
-     Max. Power (CW) @ 30°C: 200 Watts
-     Standard Mount: "NE"
-     Cable lenght / Type : 5 m / RG 58


Mechanical Data
-     Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
-     Height (approx.):
SMA 108-550: 720 mm
-     Weight (approx.): 400 gr
-     Mounting Hole: Ø 19 mm

SMA-108550NE

Scheda tecnica

Mpn
SMA 108-550 NE
Tipo
VHF/UHF/SHF Veicolari
Marca compatibile
Generico
Sotto-Categorie
VHF/UHF/SHF Veicolari
