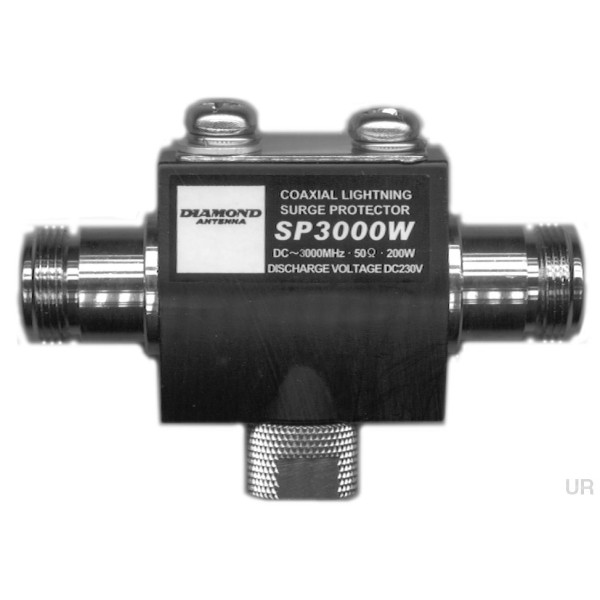

Diamond SP-3000w per protezione dai fulmini Connettori N

Diamond SP-3000w

Protezione da fulmini della Diamond per uso in linea; La protezione puo' esser usata direttamante sulla linea coassiale alla base dell'antenna o della radio

SP3000W Lightning Arrester
Special Features:

• The SP3000W is waterproof.

Specifications:

• Frequency: DC – 3,000 MHz SWR: less than 1.1
• Insertion Loss: less than 0.2 dB Max
• Power Rating: 200w PEP
• Connector: Type N female – Type N female
• Impulse Wave Discharge Voltage: 1000v
• Impulse Wave Discharge Capacity: 6000A
• Impulse Wave Retention Discharge
• Capacity: DC230v ± 20%
• Insulating Resistance DC100v: Over 10,000M ohms
• Weight: 0.25 lbs. / 113g
• Dimensions: 3.1"x1.6"x0.8" / 78Wx41Hx20D mm
