Comet CF-706 DUPLEXER
    Comet CF-706 DUPLEXER

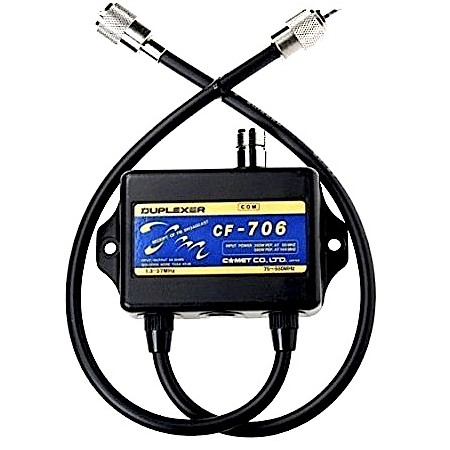

Comet CF-706 - Duplexer HF-6M / 2M - 440MHz

Ref: CF706

Subito disponibile
86,00 €
Tasse incluse
rating Nessun opinione al momento
Spedito generalmente entro 24 ore.
Quantità

Guarantee safe & secure checkout

  • Descrizione
  • Dettagli del prodotto
  • Commenti

  • Warning: file_exists(): open_basedir restriction in effect. File(/views/templates/hook/tab.tpl) is not within the allowed path(s): (/home/fhamradi/:/opt/cpanel/ea-php81/root/usr:/usr/local/lib/php:/tmp:/etc/pki/tls/certs/ca-bundle.crt:/var/cpanel/php/sessions:/usr/local/bin/wp) in /home/fhamradi/public_html/classes/module/Module.php on line 2292
    Reviews

     CF-706A

Duplexer HF-6M / 2M-440MHz per IC-706, 7000, 7100 / FT-100, 857, 897, 991 ecc.


Per adattarsi alla gamma di frequenza RX dell'IC-706MKII / G, il CF-706A è stato progettato per passare la banda FM commerciale di 88-108 MHz.





                       Band Pass      Ins. Loss      Max Power
Low Pass:    1.3-57MHz          0.4dB             350w PEP
High Pass:   75-550MHz          0.4dB             350w PEP


Isolation: 40dB minimum

CONNECTORS:
Common: SO-239
Low pass: PL-259
High Pass: PL-259



CF706
2 Articoli

Scheda tecnica

Mpn
CF-706
Tipo
Duplexer & Triplexer
Marca compatibile
Generico
Sotto-Categorie
Duplexer & Triplexer
